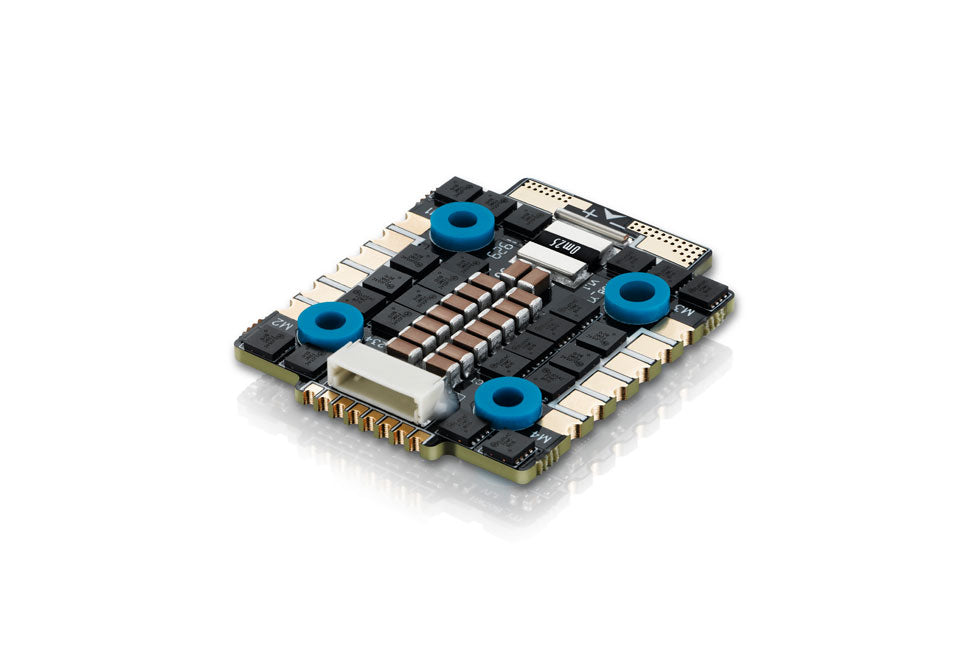

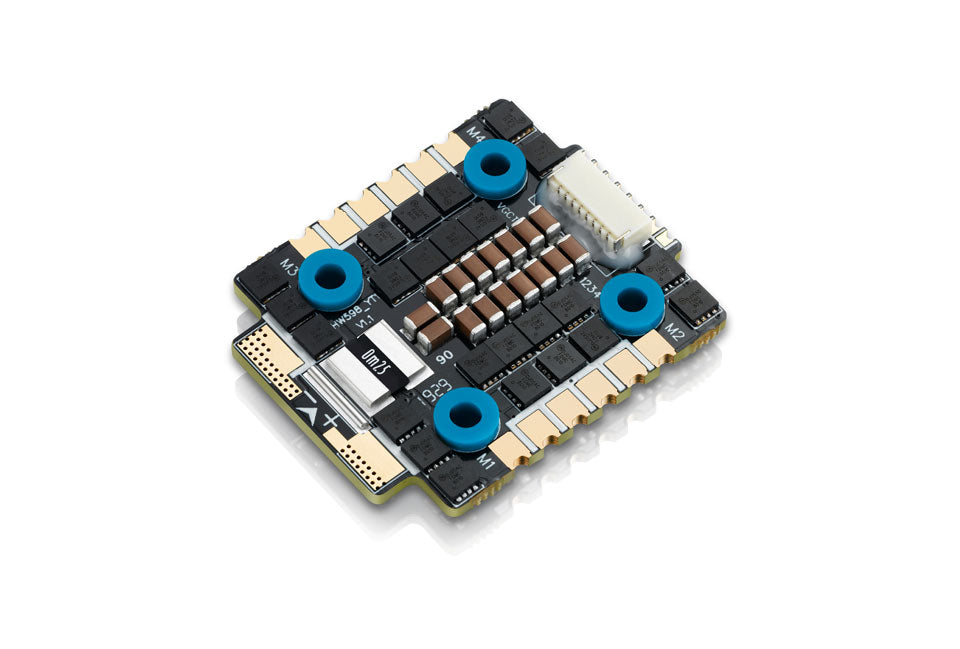

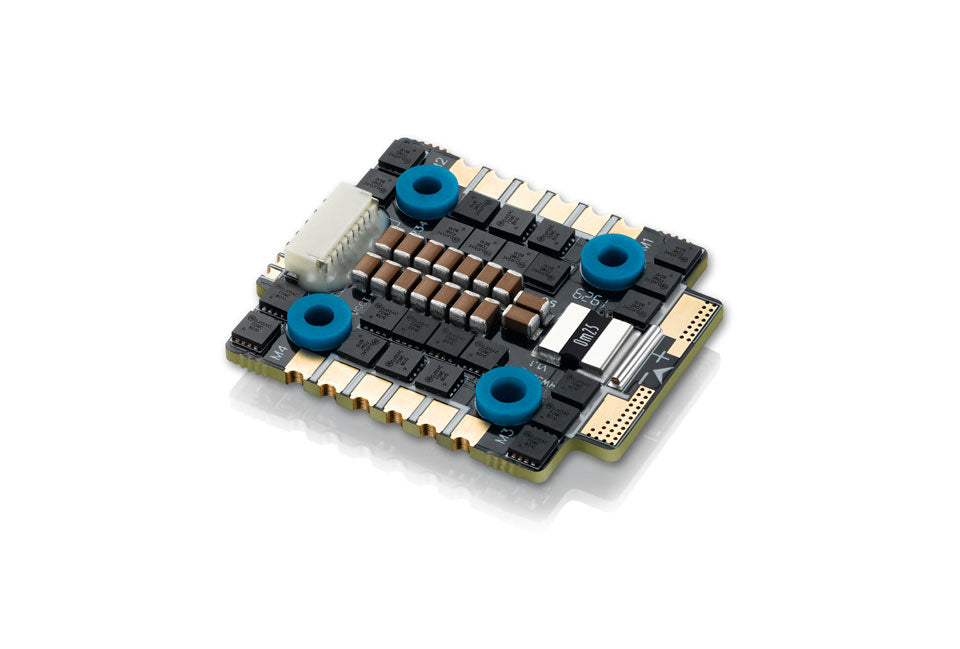

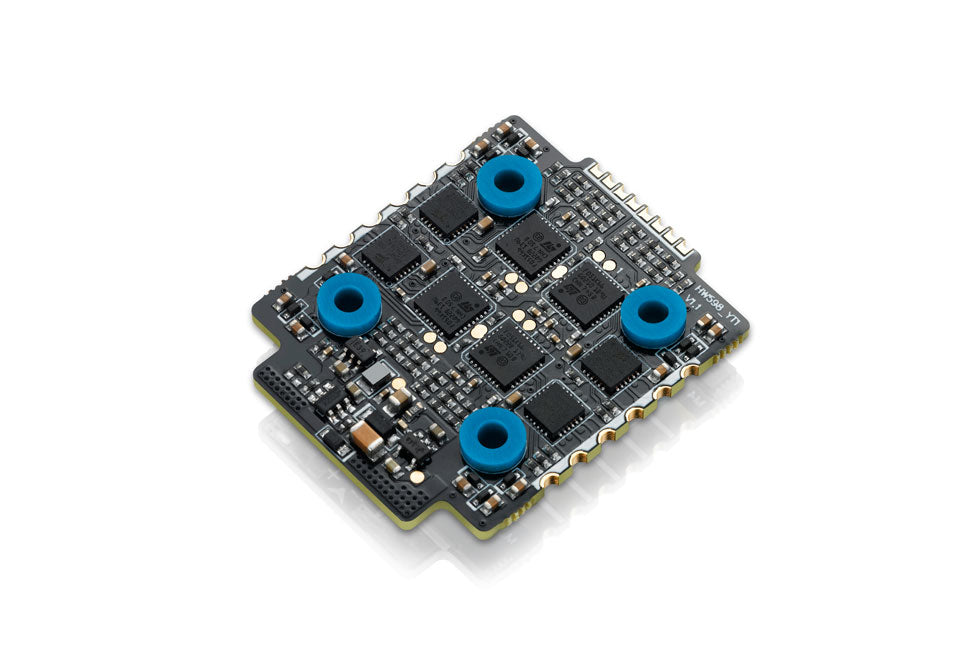

Hobbywing: XRotor Micro 40A 6S 4in1 ESC (20x20)

Regular price $74.99 $0.00 Unit price per
Shipping calculated at checkout.

UPC: 032733833907

XRotor Micro 40A 4in1 ESC features 32bit MCU and 3rd-generation BLHeli-32 firmware, handles 6S up to 40A per channel. The built-in voltameter module which allows FC to monitor the battery volt & amp in real time. With this 20x20 ESC makes your electronic stack smaller and be able to shave some grams.

Specifications

  • Cont./Peak Current: 40Ax4/ 60Ax4
  • Input Voltage: 3-6S Lipo
  • BEC output: No

Wires and Connectors

  • Input Wires: Red-14AWG-100mm/ Black-14AWG-100mm
  • Output Wires: No wires but solder tabs
  • Input Connectors: XT60 plug enclosed with package.
  • Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

Features

  • Firmware: Hobbywing_XRotor_BLHeli-32 Version
  • ESC Programming: BLHeliSuite32
  • Stick Programming supported
  • DEO supported
  • Throttle Range Calibration supported
  • Oneshot125 Mode supported
  • Oneshot42 Mode supported
  • MultiShot Mode supported
  • DShot150/300/600/1200 supported
  • Timing supported
  • Motor Rotation supported

Size & Weight

  • Size: 40x33x5mm
  • Weight: 12g

Note: If you have any issues with this product, Hobbywing supports the product directly via there support website https://www.hobbywingdirect.com/pages/rma

Manual: https://www.hobbywing.com/products/enpdf/XRotorMicro40A20x20.pdf
