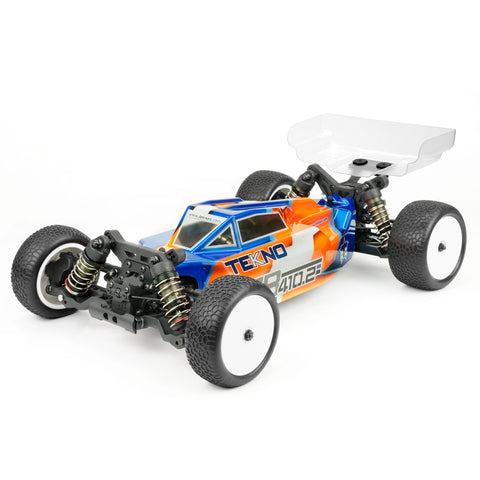

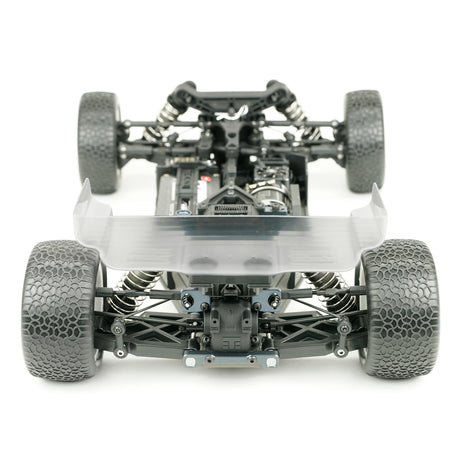

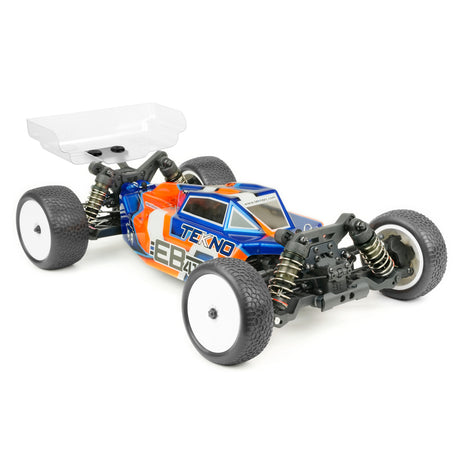

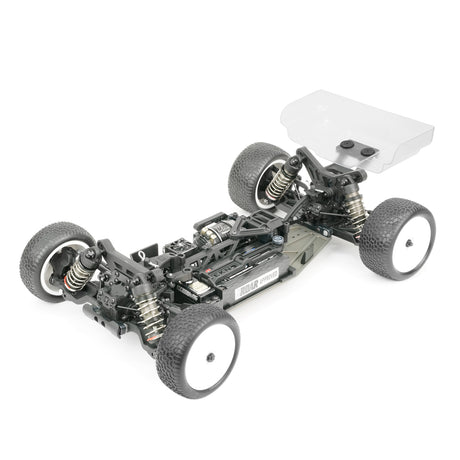

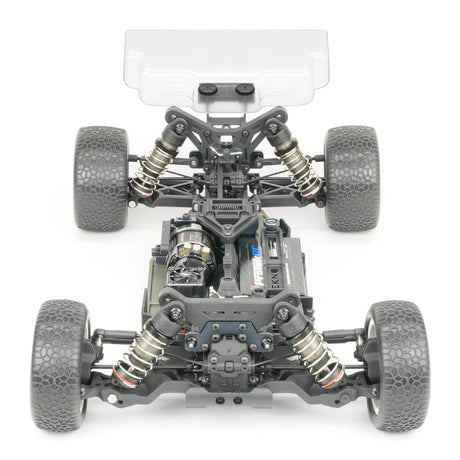

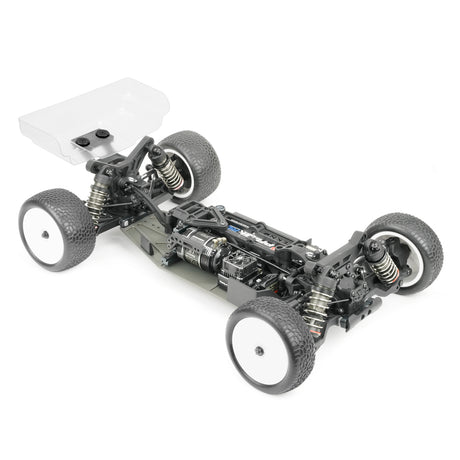

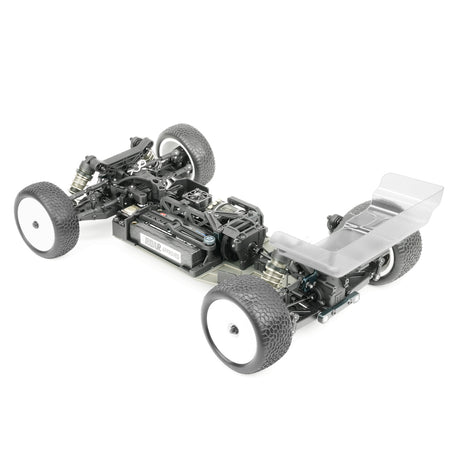

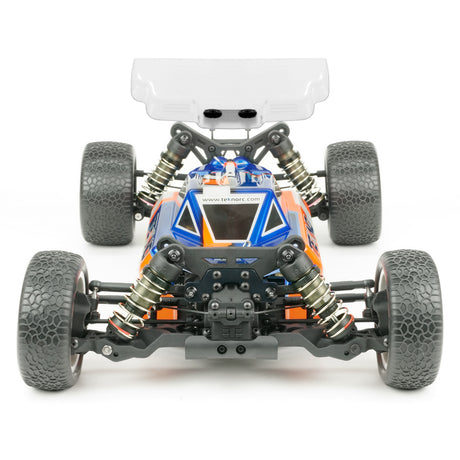

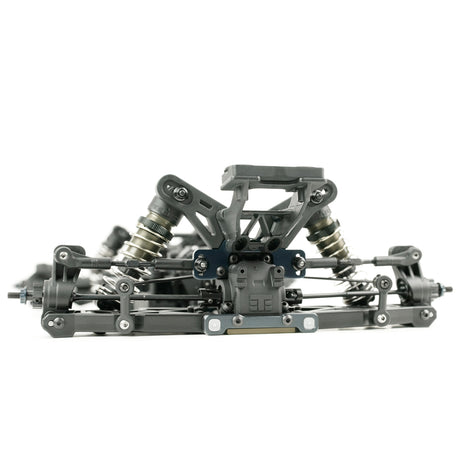

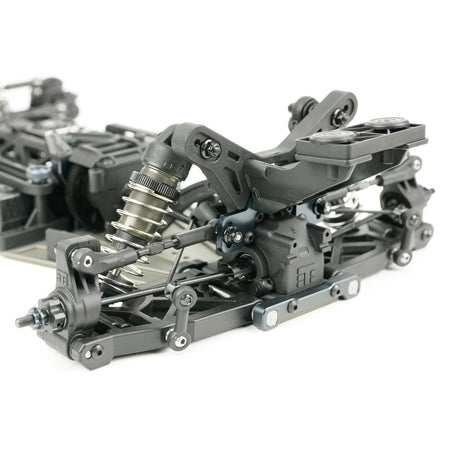

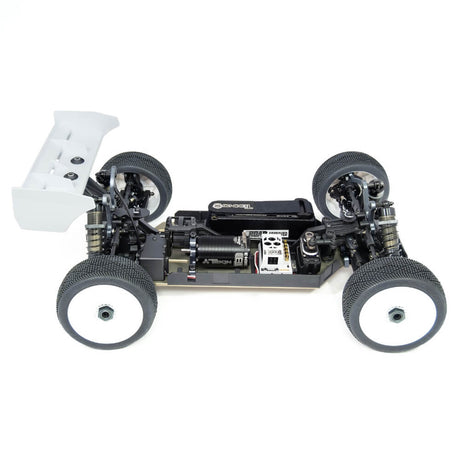

EB410.2 Key Features:

Revised CNC 7075 Long Wear Chassis
New Larger 3.5mm HD Hinge Pins and Revised Hinge Pin Inserts
New ABCD Hinge Pin Braces w/ Revised Suspension Geometry

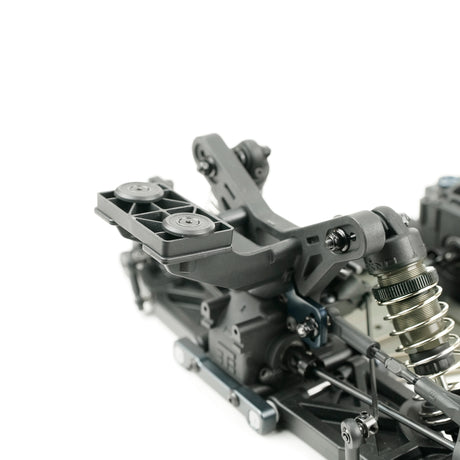

New Taller, Stronger One Piece Wing Mount w/ Height Adjustments

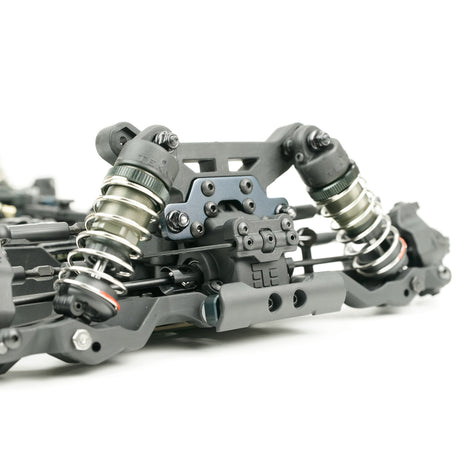

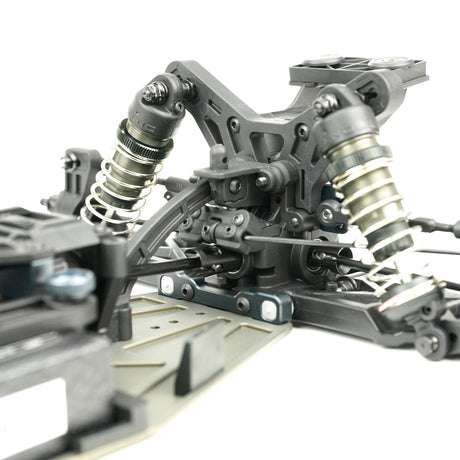

13mm Big Bore Shocks w/ Revised Cartridge and Cap Bushing
Ultra Secure Locking Spring Perch Design
New Rear Arms w/ Front Mounted Shocks
New Adjustable Roll Center Rear Hubs
New 15 Degree LRC Spindle Carriers
New Aluminum Front Camber Plate w/ Bulkhead Brace
Revised Material 81T Spur Gear
Front and Rear Sway Bars Now Included
Large Wheel Bearings and 6mm HD Stub Axles
Newly Optimized Reverse Bellcrank Steering System

Wheel Compatibility

TLR 22x-4 wheels PN: 43021 (yellow) and 43022 (white) as well as Proline wheels PN: 2767-02 (white) and 2767-04 (yellow) are compatible. If you are using TKR6553X – Adjustable Ackermann Spindles, spindle arm TKR6669D is recommended.

Specifications

Length: 393mm (without wing) up to 424mm (with wing)
Wheelbase: 283-294mm
Width: 246-250*mm (*optional hubs required)
Weight: 1630 (or less) to 1780g depending upon equipment used
Diff Ratio: F/R – 16/40t, Center – 81t
Battery tray dimensions: 96x47x26mm
Kit/RTR: Kit

Needed to Complete

2/3 channel radio/transmitter
1/10 scale ESC and motor system
High torque steering servo (at least 200oz/in)
48 pitch 17 to 34 tooth pinion
2s shorty LiPo battery (at least 4000mAh)
1/10th scale 4wd buggy tires, wheels & CA glue
Paint for body

Recommended Tools

Nut drivers 5.5mm (TKR1108) and 7.0mm (TKR1109)
Hex drivers 1.5mm, 2.0mm, and 2.5mm
Hobby knife
Needle-nose pliers
Shock tool (TKR1115) OR adjustable (Crescent) wrench (for shock assembly)
4mm turnbuckle wrench (TKR1103) – 5.5/7.0 two-sided wrench (TKR1119)

Manual: https://www.teknorc.com/shop/tkr6502-eb410-2-1-10th-4wd-competition-electric-buggy-kit/

Setup Sheet: https://www.teknorc.com/wp-content/uploads/2019/10/EB410_2instructions_SetUpSheet_Blank_ReaderSaveable.pdf
