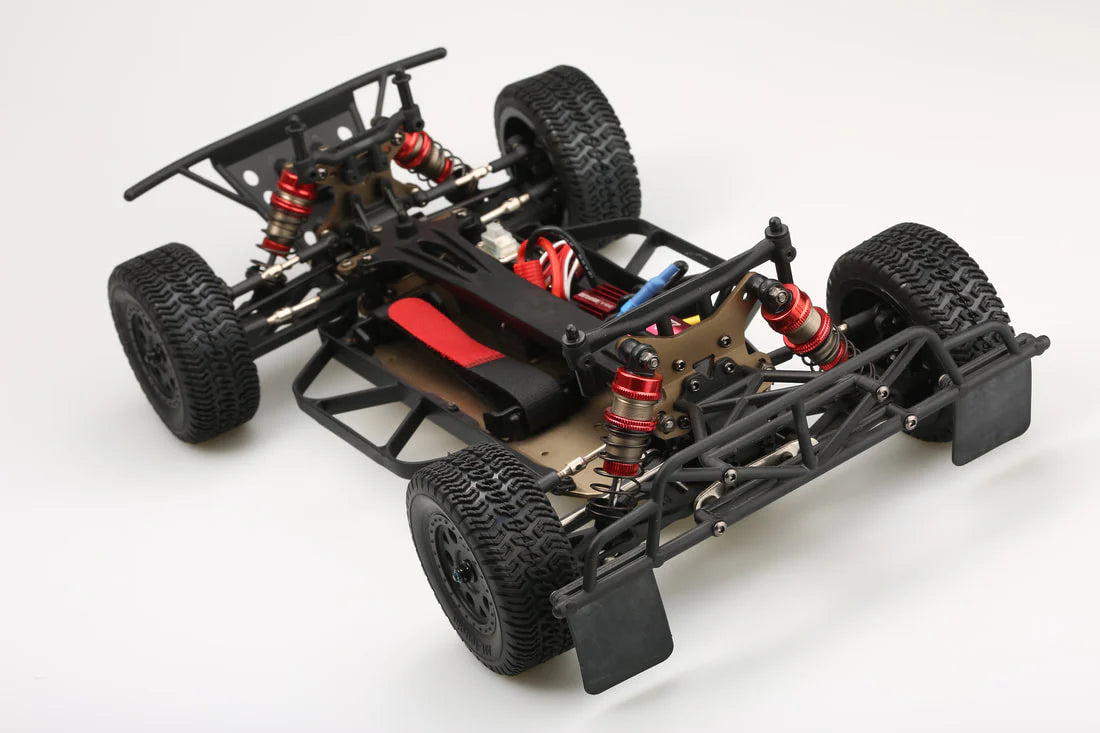

LC Racing: EMB-SCHK 1/4 4WD Mini Short course Truck Kit

Note: Motor and ESC not included as shown in pictures.

Required to Run

• Assembly of kit
• 380 size motor and ESC
  • Recommended: Hobbywing 2848 Motor
  • Recommended: Hobbywing XR10 Justock G3S ESC
• Transmitter and compatible receiver

• 2200mah lipo battery and charger
  • Recommended: LC Racing 2200mah Hard Case Lipo
    • L6254 Battery Mount needed for 2200mah lipo
  • Recommended: iMars s100 or iMars D300
• Shock and diff oil
  • Recommended: Racers Edge 15wt to 25wt
  • Recommended: Racers Edge 3000 cST to 7000 cST
• Tools and paint

Contents

• Unassembled EMB-SC 1/14 4WD Short Course Truck
• Unpainted body

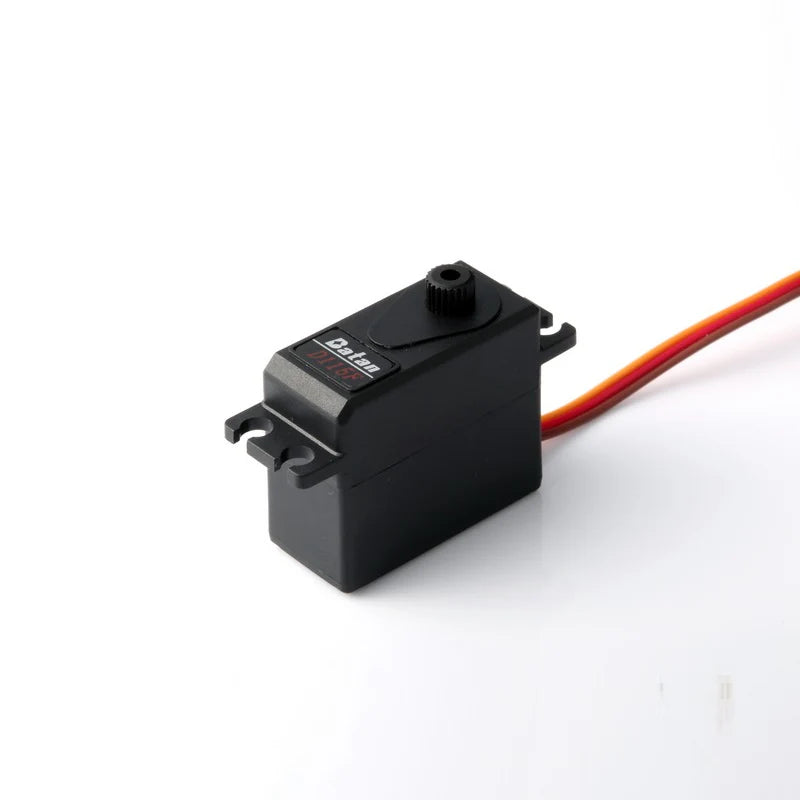

• Batan D115F servo
• 1.5mm, 2mm hex and user manual

Features

• LC Racing designed short course tires
• LC Racing designed slipper clutch with adjustable gear cover

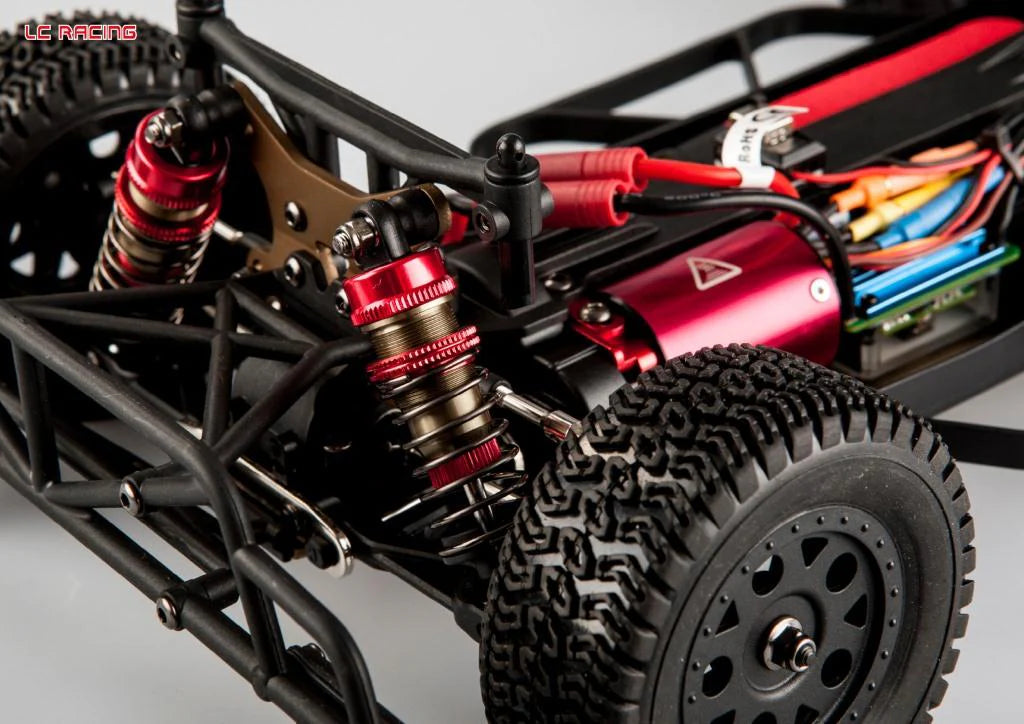

• 6061-T6 aluminum-threaded, oil-filled, coil-over, adjustable shocks
• 2.5mm 6061-T6 aluminum shock towers
• Front and rear metal gear differentials
• Center shaft driven 4WD
• Adjustable Servo Saver
• Steel hinge-pins
• 2.0mm anodized aluminum chassis with front and rear kick-up
• Industry standard 12mm wheel hex adaptors

Specifications

• Scale: 1/14
• Length: 360mm
• Width: 210mm
• Height: 135mm
• Wheelbase: 225mm
• Weight: N/A
• Tire Type: LC Racing pre-mounted short course tires
• Chassis: 2.0mm anodized aluminum
• Gear ratio: 8.23
• Ball bearings: Complete
