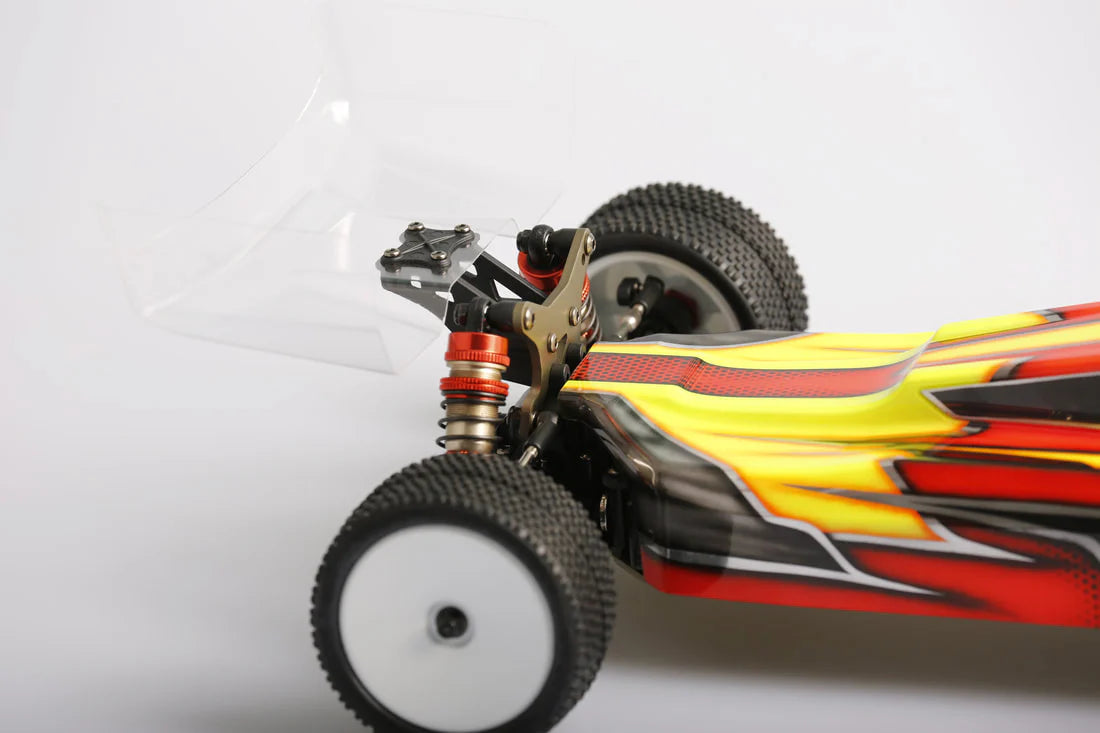

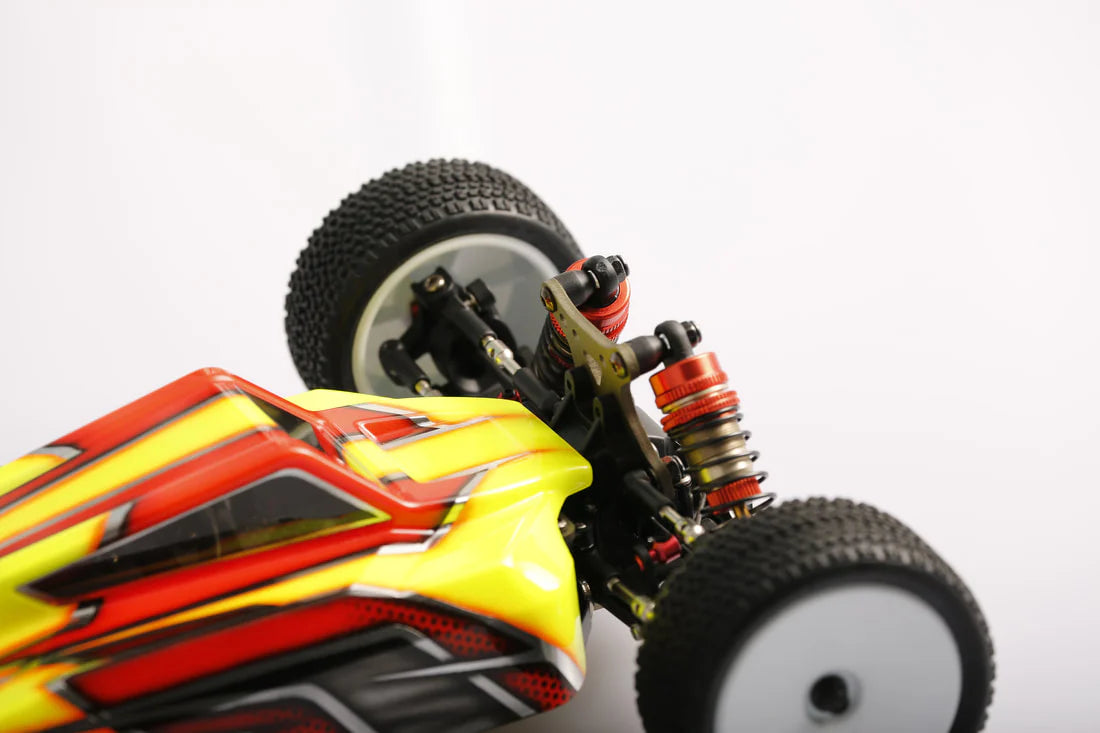

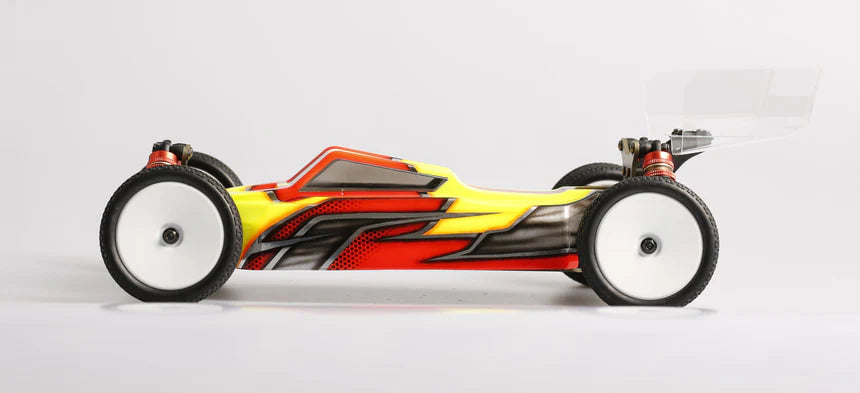

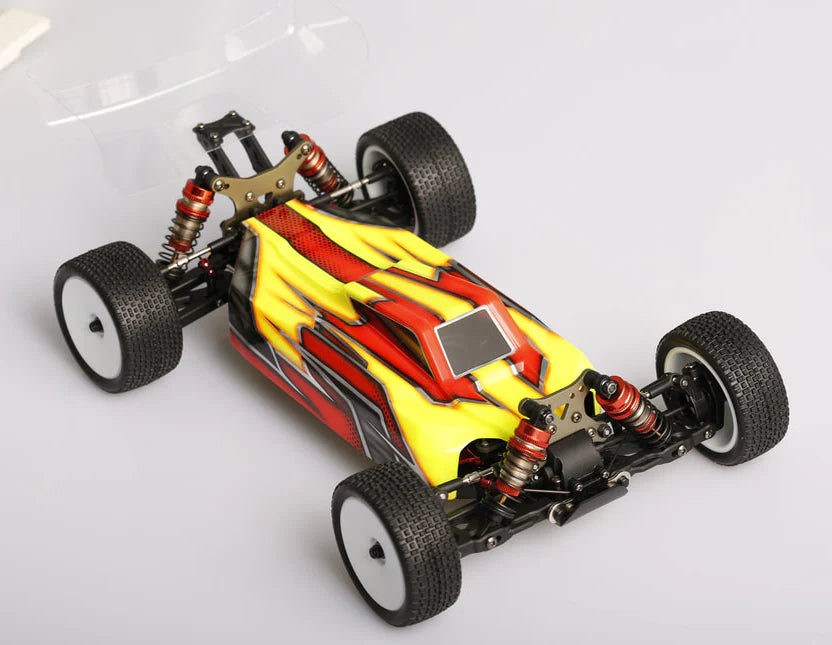

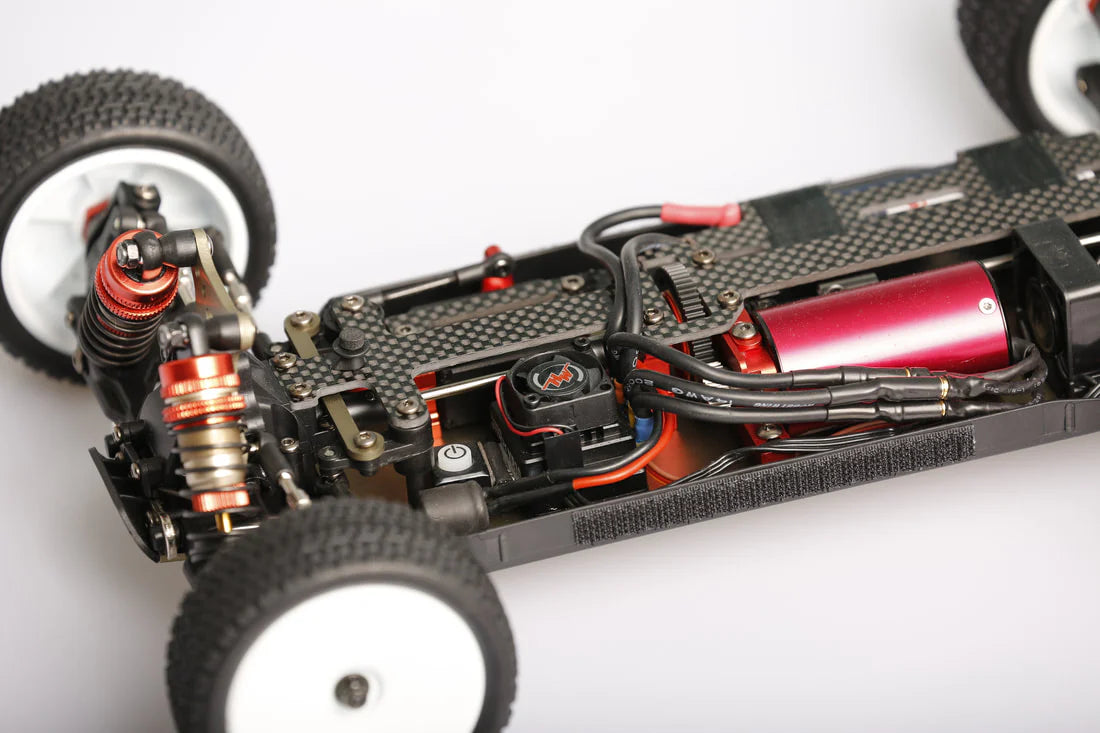

LC Racing: LC12B1-HK Combo 1/12 4WD Competition Buggy Kit (with Motor+ESC)

Required to Run

• Transmitter and compatible receiver
  • Recommended: Radiomaster MT12 ELRS
• 1800mah lipo battery and charger
  • Recommended: 1800mah Gens Ace Lipo
  • Recommended: iMars s100 or iMars D300
• Shock and diff oil
  • Recommended: Racers Edge 15wt to 25wt
  • Recommended: Racers Edge 3000 cST to 7000 cST
• Tools and paint

Contents

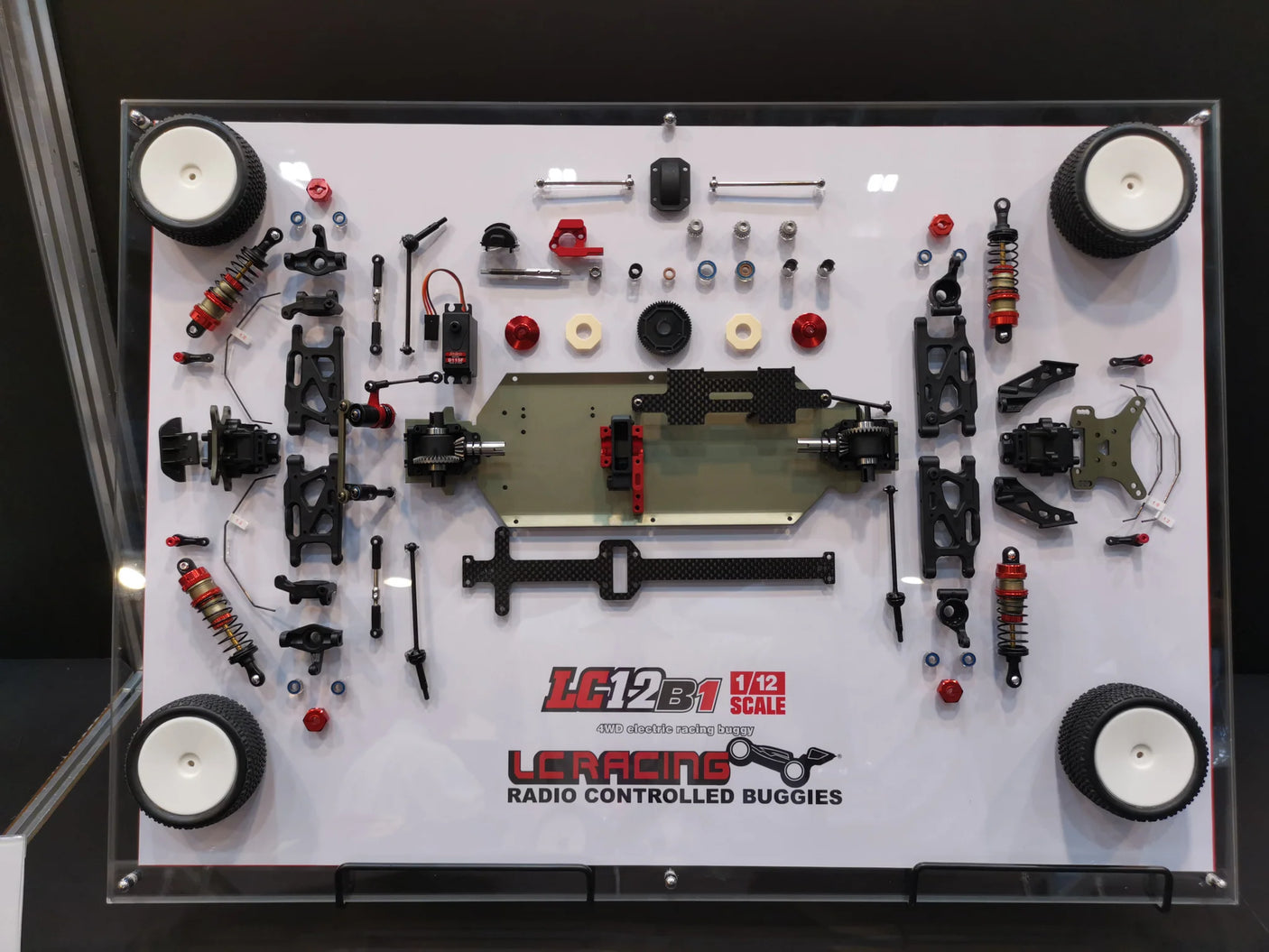

• 1/12 LC12B1 4WD Competition Buggy (Assembly required)
• 4500kv motor and 35A ESC
• High downforce low profile lexan body (unpainted)
• Pre-mounted off road wheels and tires
• Front and rear anti roll bars 1.0mm, 1.2mm and 1.5mm.

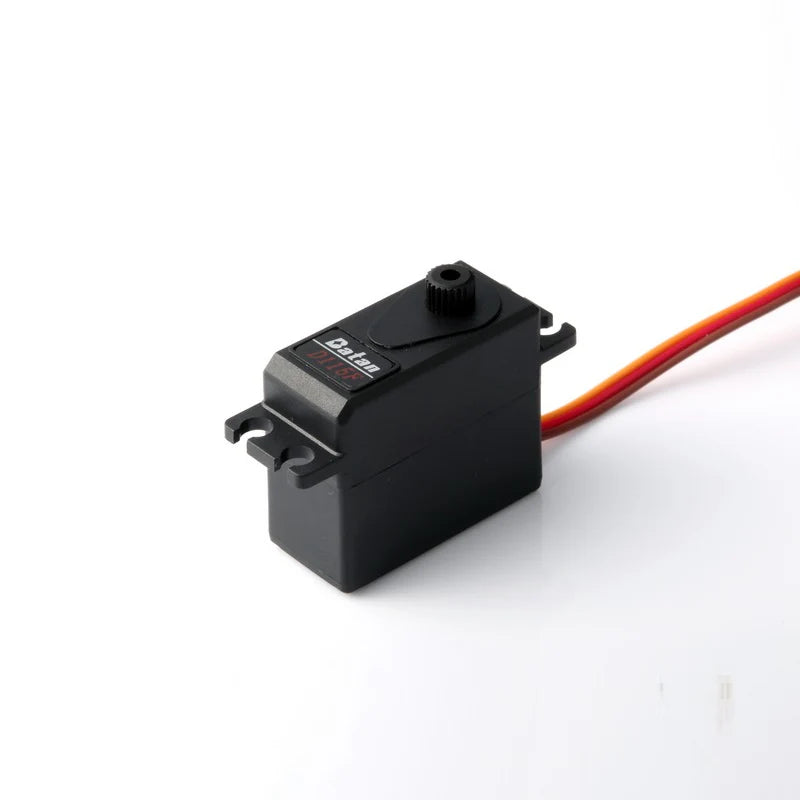

• Batan D115F Digital servo
• 60T Spur Gear and 17,18.19T pinon gears

Features

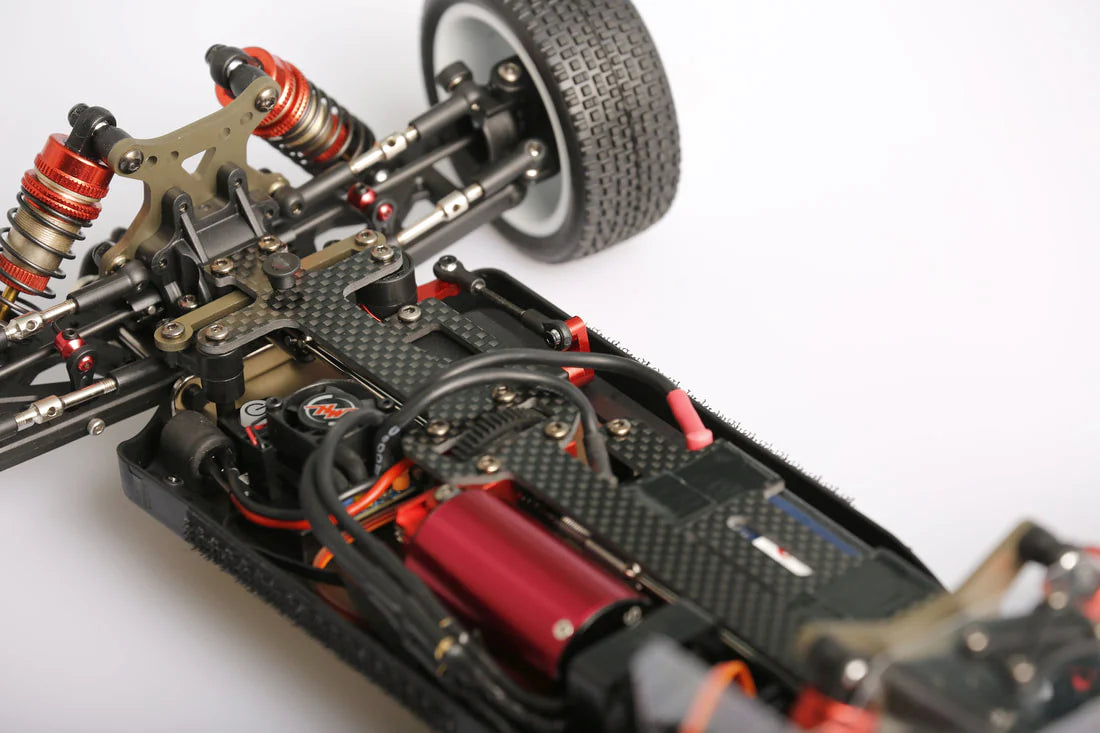

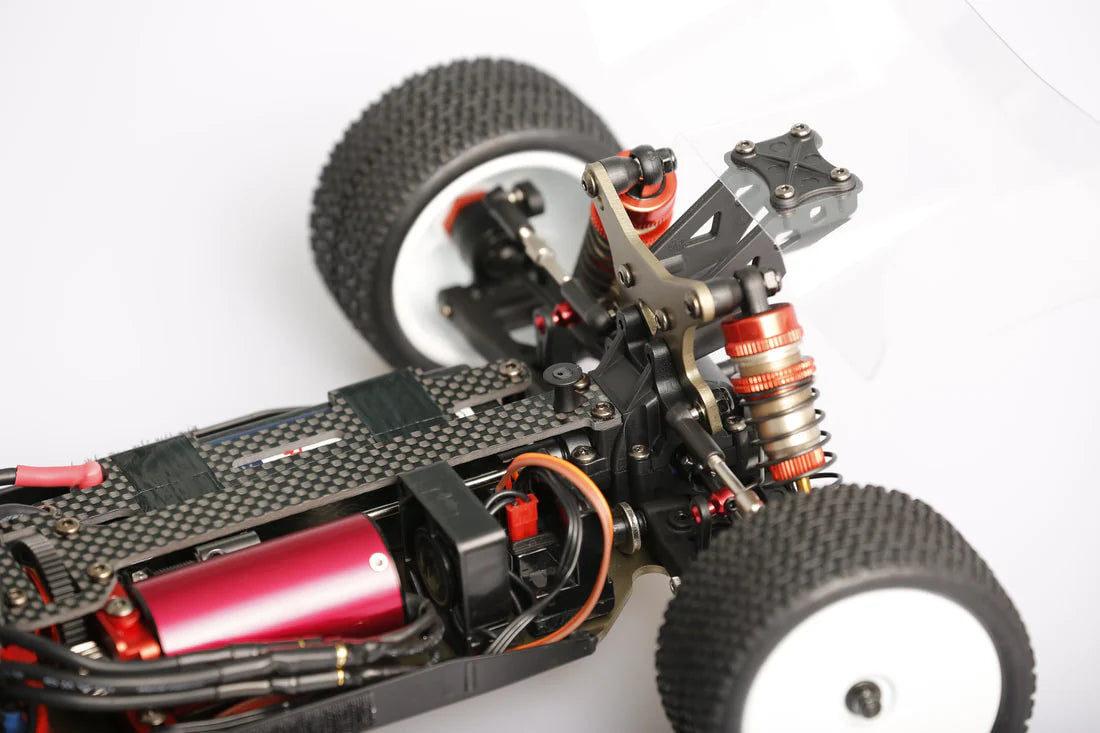

• New competition mid motor layout
• Central slipper clutch, improved cornering speed, new designed aluminum central bulkhead.
• One piece 2.0mm carbon fiber upper deck
• Independent (floating) battery mount, allows battery to be mounted to the chassis without touching it.
• 2.0mm 6061 T6 Aluminum chassis.

Differential and Drivetrain

• Front and rear bevel and drive gear oil filled differentials
• Adjustable center slipper clutch with 60T spur gear.
• 2 pad slipper clutch
• Front and rear CVD for maximum performance
• Full set of 24 high speed sealed ball bearings

Suspension

• High quality spring steel suspension mount front and rear.
• Front and rear anti roll bars.
• Aluminum shock with 3mm shock shaft.

Specifications

• Class: 1/12th scale 4WD competition buggy
• Width: 205mm
• Length: 352mm
• Wheelbase: 225mm
• Reduction ratio: 2.46
• Differential pinion: 15T front and rear
• Differential bevel: 37T front and rear
• Weight: 1.05kg (race ready)
