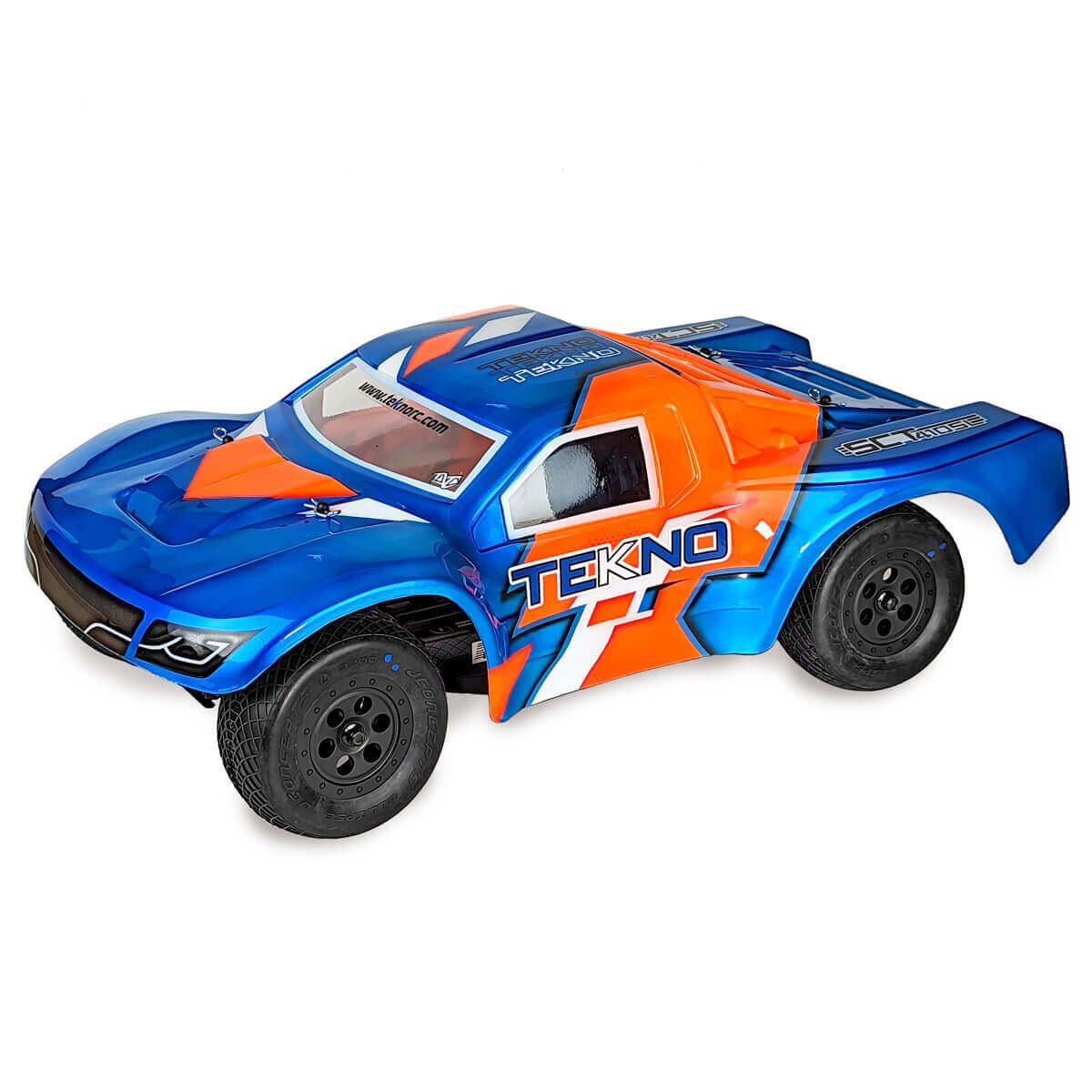

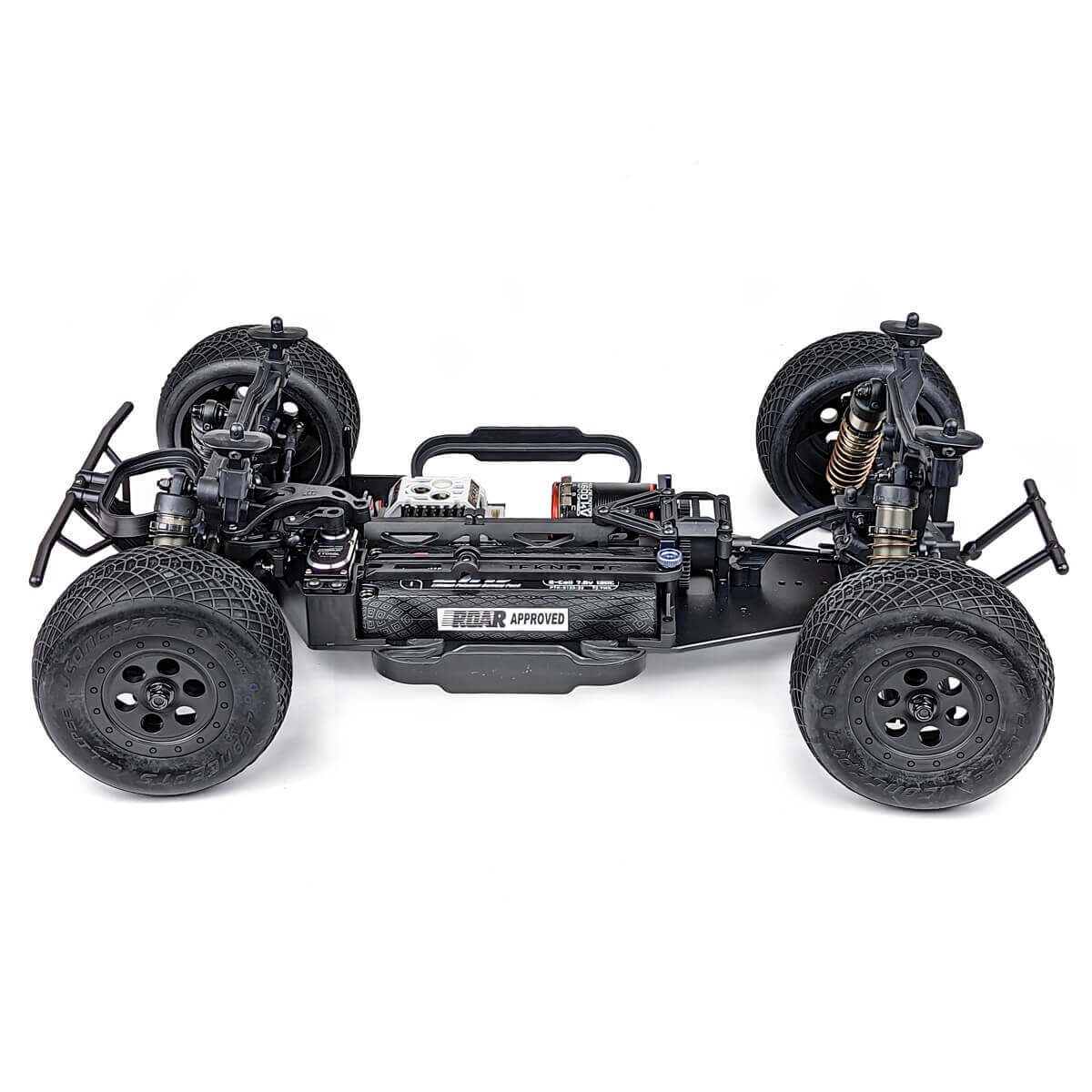

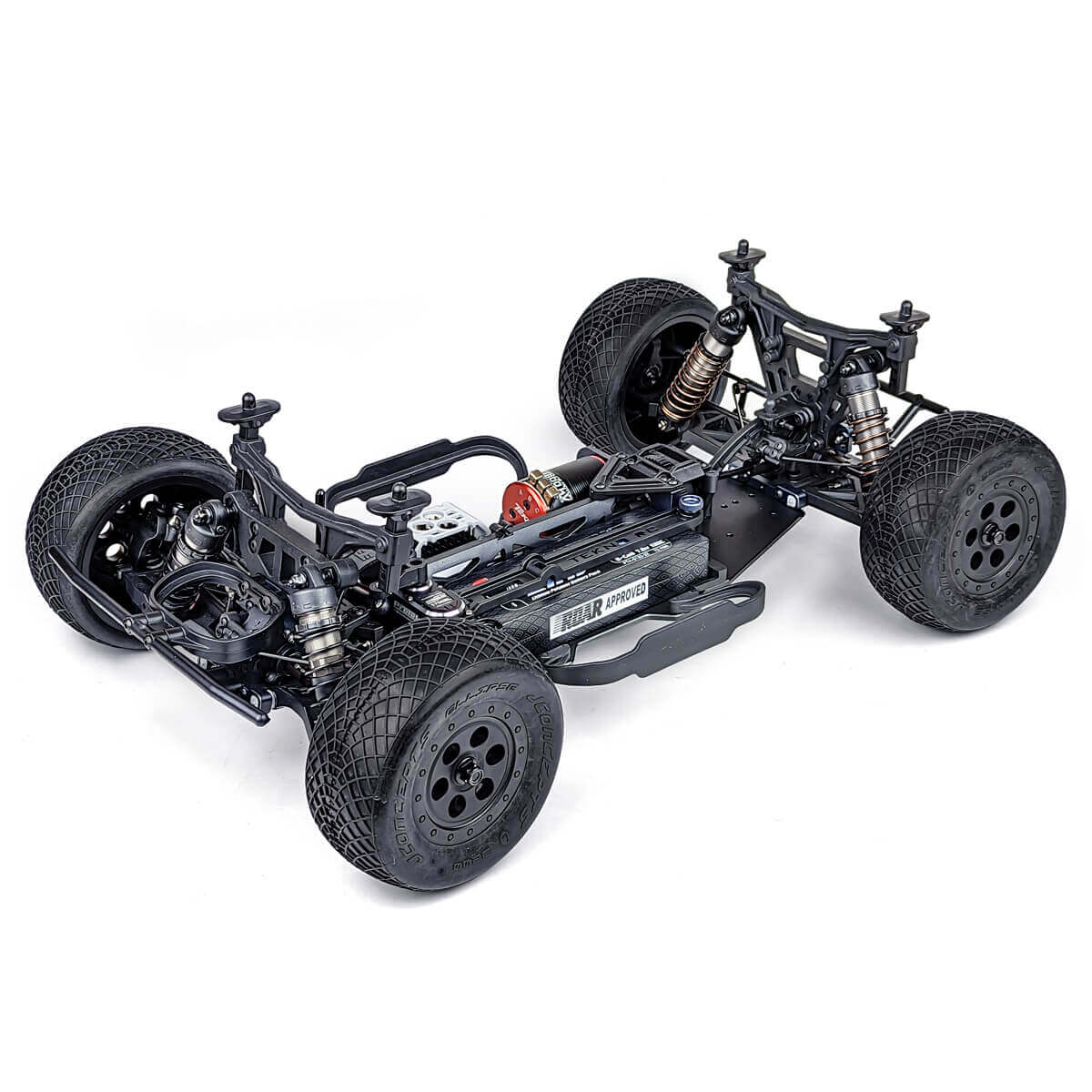

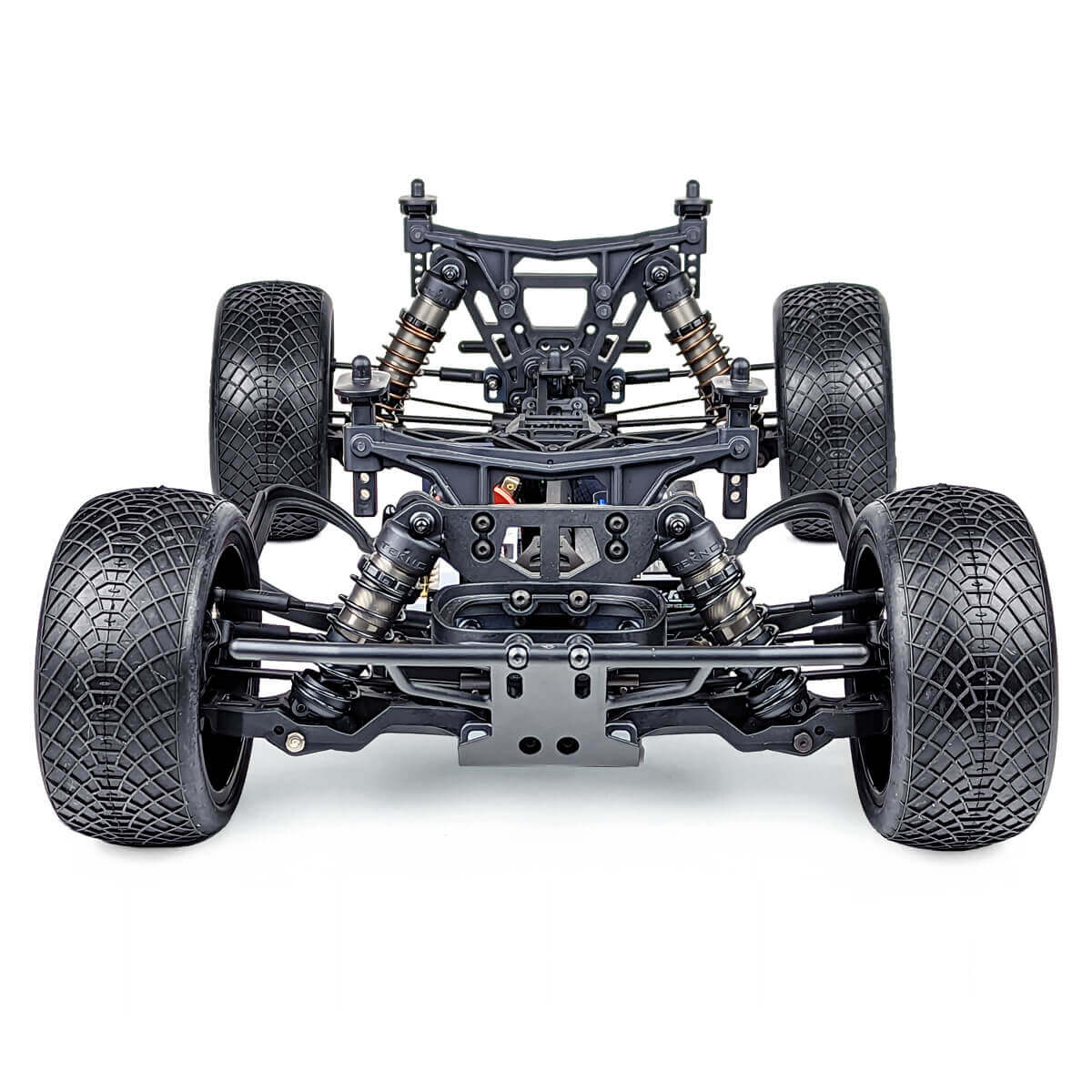

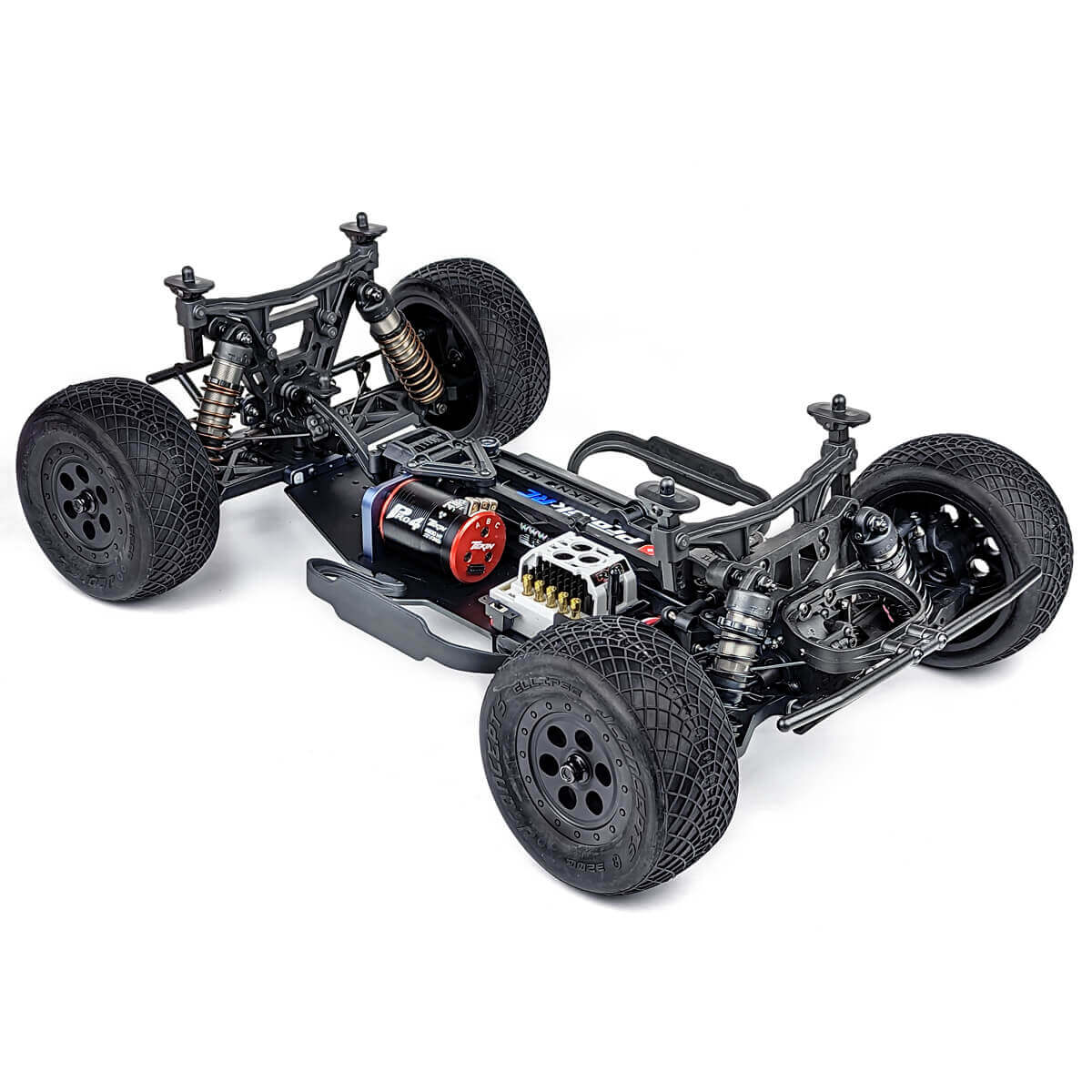

Tekno: SCT410SL 1/10th 4×4 Lightweight Short Course Truck Kit (TKR7000)

Pre-order: Will by 8/25/23

EB410.2 Key Features:

• 4mm CNC Machined Black Anodized Long Wear Chassis
• Large 3.5mm HD Hinge Pins and Hinge Pin Inserts
• CNC 7075 Aluminum Hinge Pin Braces w/ Revised Suspension Geometry
• Aluminum Front and Rear Camber Plates w/ Bulkhead Brace
• 13mm Big Bore Shocks w/ New Spring Options
• 18 Degree LRC Spindle Carriers
• CNC 7075 One-Piece Motor Mount w/ Preset Gearing Options
• Spindles w/ Adjustable Ackermann Plates
• Adjustable Roll Center Rear Hubs
• Strong HD Outdrives and Diff Couplers
• Accommodates ‘Standard’ or ‘Shorty’ 2S Battery Packs
• Lightweight SCT Bumpers, Nerf Bars, and Body Mounts

Needed to Complete

•  2 Channel radio and receiver
• 540-550 4 pole motor system and compatible ESC
• Standard size high torque steering servo (at least 240 oz/in) * Running less than the recommended rating will increase the chance of premature servo failure.
• 2S (2 cell, 7.4v) shorty or full size LiPo battery
• 1/10th scale SCT body
• 1/10th scale SCT wheels & tires, CA glue (or premounts)
• 32 pitch pinion gear (16 tooth - 21 tooth)

Recommended Tools

• Hex drivers 1.5mm, 2.0mm, 2.5mm
• Nut drivers 5.5mm (TKR1108), 7.0mm (TKR1109)
• Hobby knife
• Needle-nose pliers
• Shock tool (TKR1115) OR adjustable (Crescent) wrench (for shock assembly)
• 4mm turnbuckle wrench (TKR1103) AND 5.5/7.0 two sided wrench (TKR1119)
• Body reamer

Manual: https://www.teknorc.com/wp-content/uploads/2023/06/SCT410SL_instructions_REV3.pdf

Setup Sheet: https://www.teknorc.com/wp-content/uploads/2023/02/SCT410SL_instructions_SetUpSheet_Blank_ReaderSaveable.pdf
