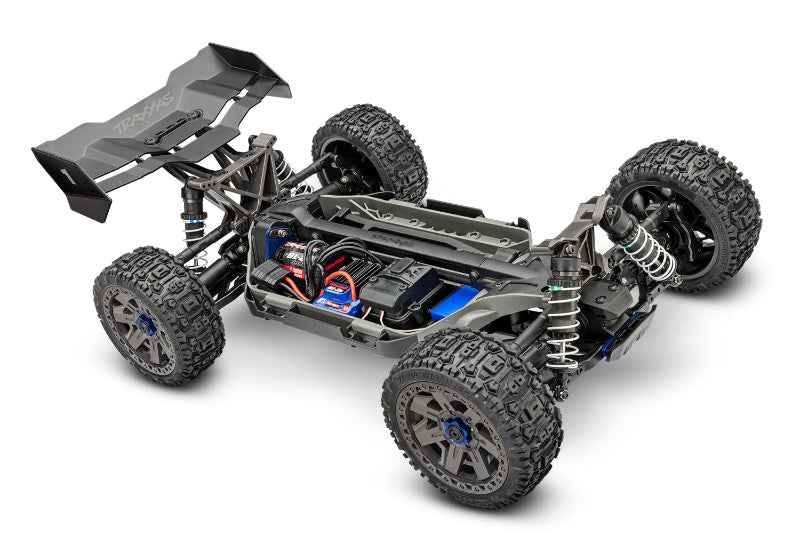

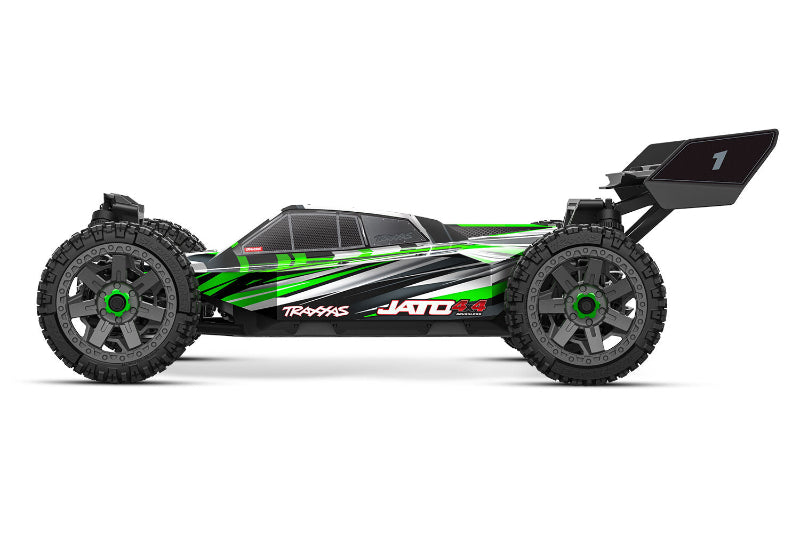

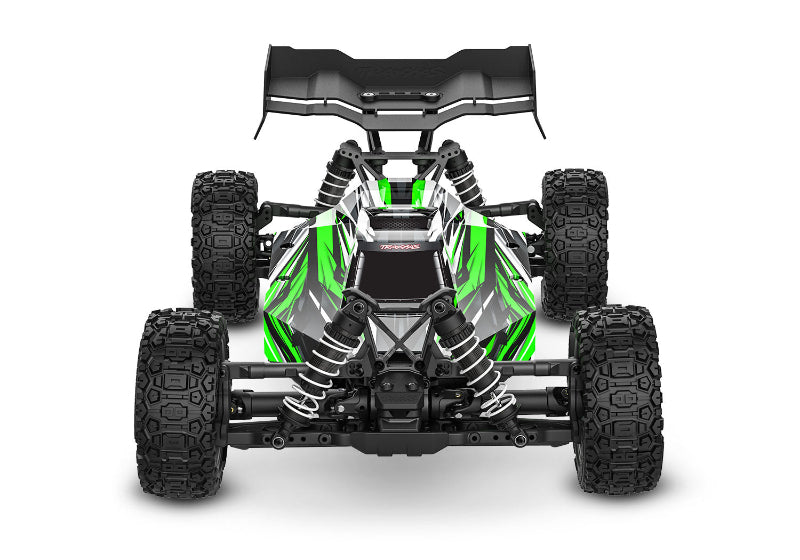

Traxxas: Jato 4X4 BL-2s (Green)

The Traxxas Jato 4X4 BL-2s combines rugged durability and precision design, perfect for tackling tough terrains with exceptional control and reliability.

What You’ll Need

• 2s Lipo and compatible charger
• Four AA alkaline batteries for the transmitter

Features

• BL-2s™ Waterproof ESC and 3300 kV Brushless Motor
• Clipless Body

• TQ 2.4 GHz Radio System
• Extreme Heavy Duty Upgrade Kit Installed

Specifications

• Model Type: 1/8 scale buggy

• Skill Level: 1

• Length: 20.4 inches (517 mm)

• Width: 12 inches (305 mm)

• Height: 7 inches (179 mm)

• Weight: 5.2 pounds (2.36 kg)

• Wheelbase: 12.6 inches (320 mm)

• Front Track: 12 inches (305 mm)

• Rear Track: 12 inches (305 mm)

• Shock Length (front): 3.98 inches (101 mm) - XX-long

• Shock Length (rear): 3.98 inches (101 mm) - XX-long
• Differential Type: Hardened steel bevel, sealed, limited slip

• Gear Pitch: 32

• Overall Drive Ratio: 12.80:1

• Drive System: Shaft-driven 4WD

• Steering: Dual-bellcrank with integrated servo saver

• Chassis Structure/Material: Composite tub

• Tires: 4.53″ Sledgehammer® with foam inserts

• Wheels (front/rear): 3″ gray buggy wheels

• Wheel Diameter: 3″ inches (78 mm)

• Radio System: TQ™ 2.4 GHz (2-channel)

• Servo: Waterproof digital 2075 servo (125 oz-in torque)

• Battery Compartment (L/W/H): 165 mm x 50 mm x 23/26 mm

Motor Specifications

• Motor Type: BL-2s 3300 kV sensorless brushless motor

• Weight: 7.51 ounces (213 g)

• Length: 3.15 inches (80 mm)

• Diameter: 1.42 inches (36 mm)

• Shaft Size: 3mm

• Connector Type: Traxxas Quick Connect Motor Plug

ESC Specifications

• Input Voltage (cells): 6-7 Cells NiMH / 2s LiPo

• Case Size: 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)

• Weight: 3.07 ounces (87 g)

• BEC Voltage: 6.0 volts

• Reverse Delay: Yes, with lockout

• Thermal Protection: Two-stage thermal shutdown

• Ports: Auxiliary fan

What’s In The Box

• Jato 4X4 with BL-2s ESC and 3300 kV motor

• Quick Start Guide

• TQ 2.4 GHz radio system

• High quality maintenance tools
