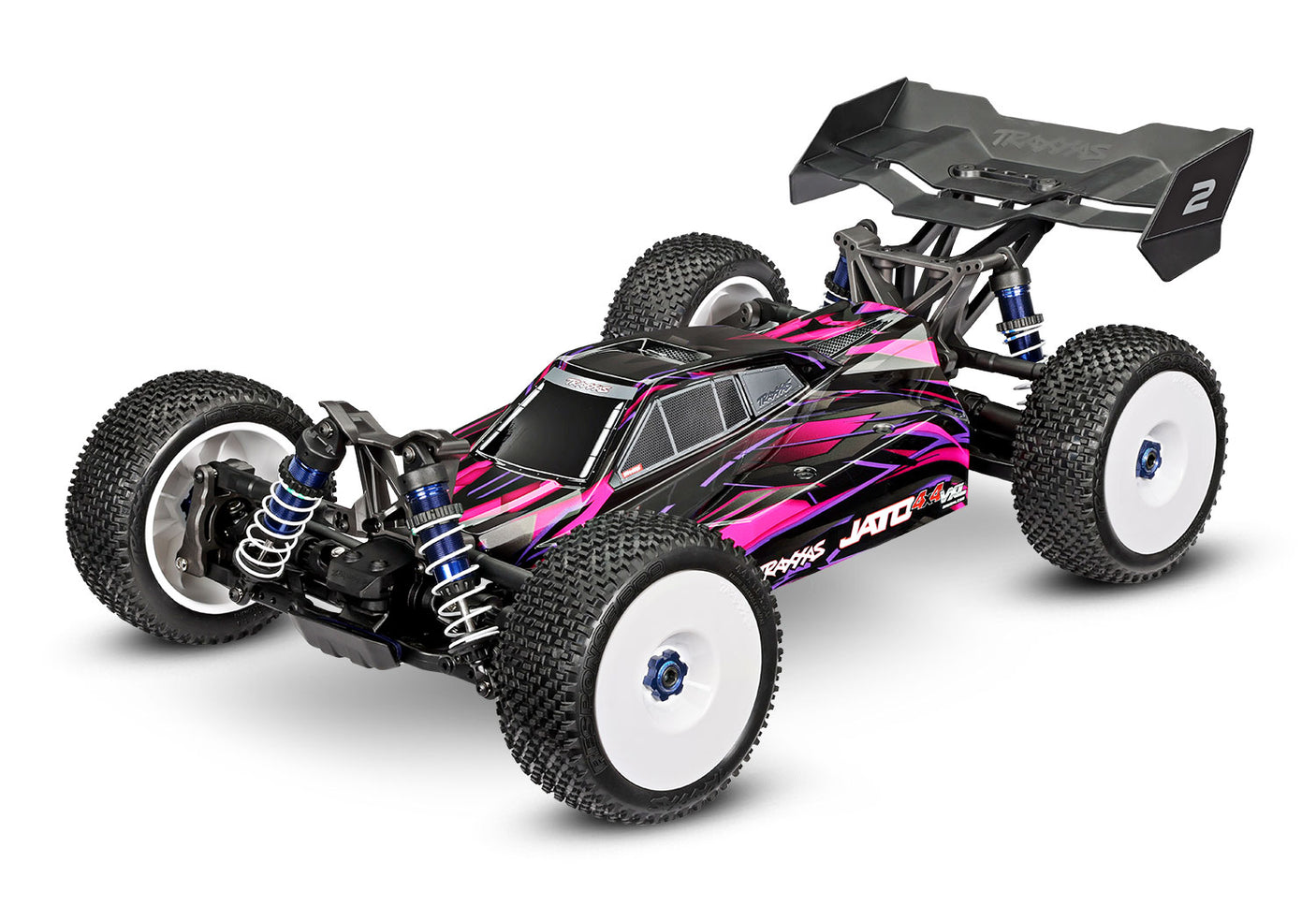

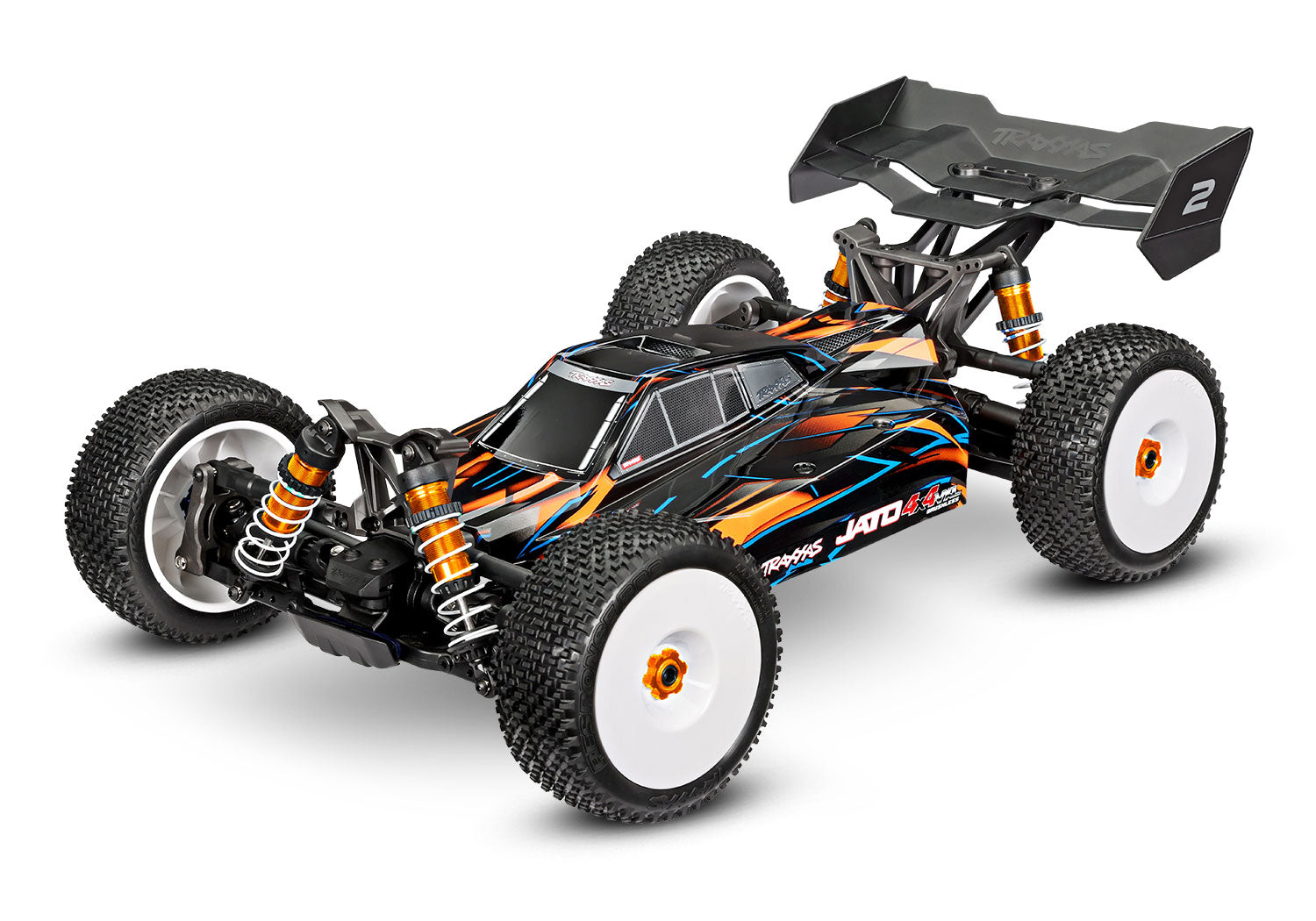

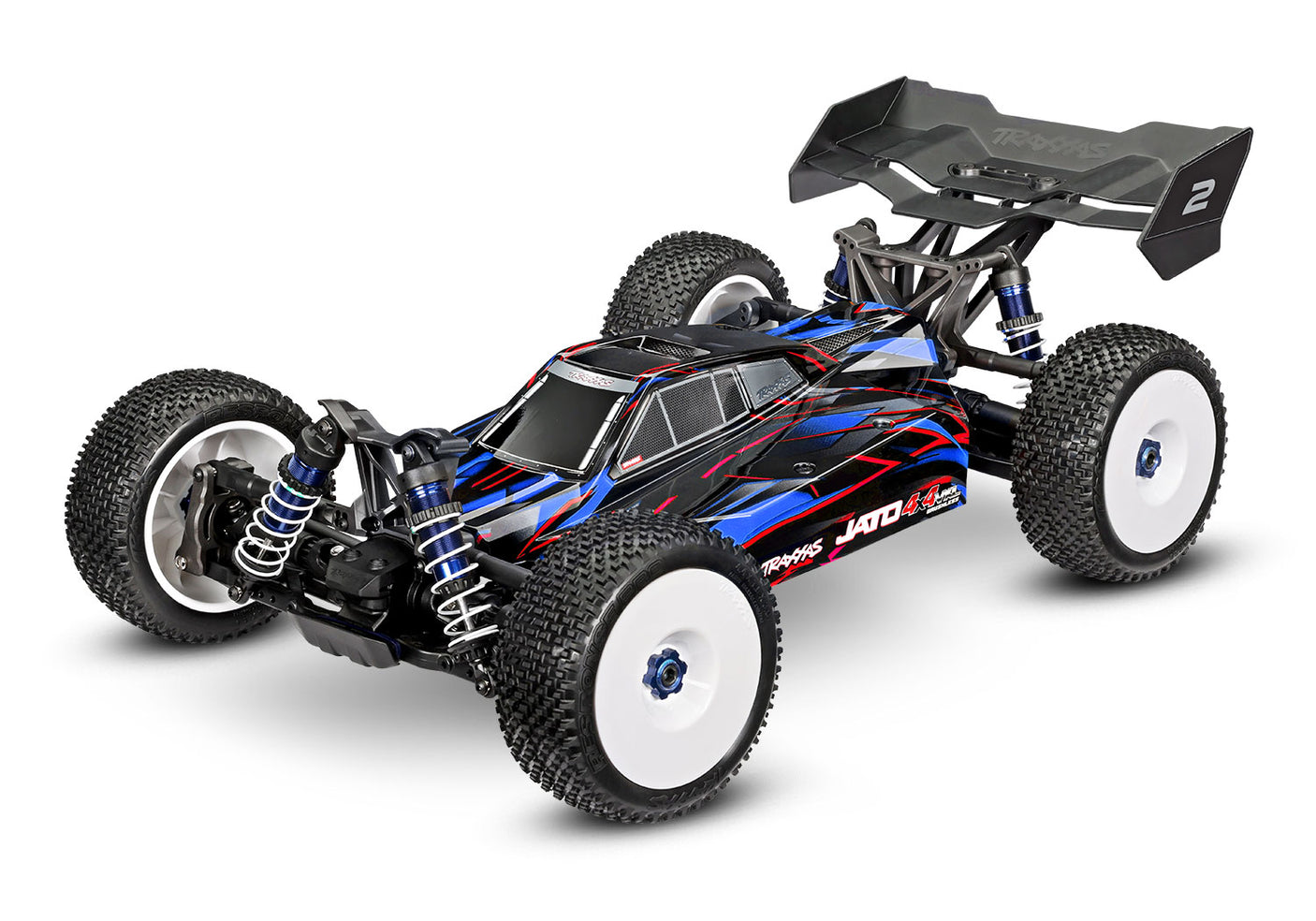

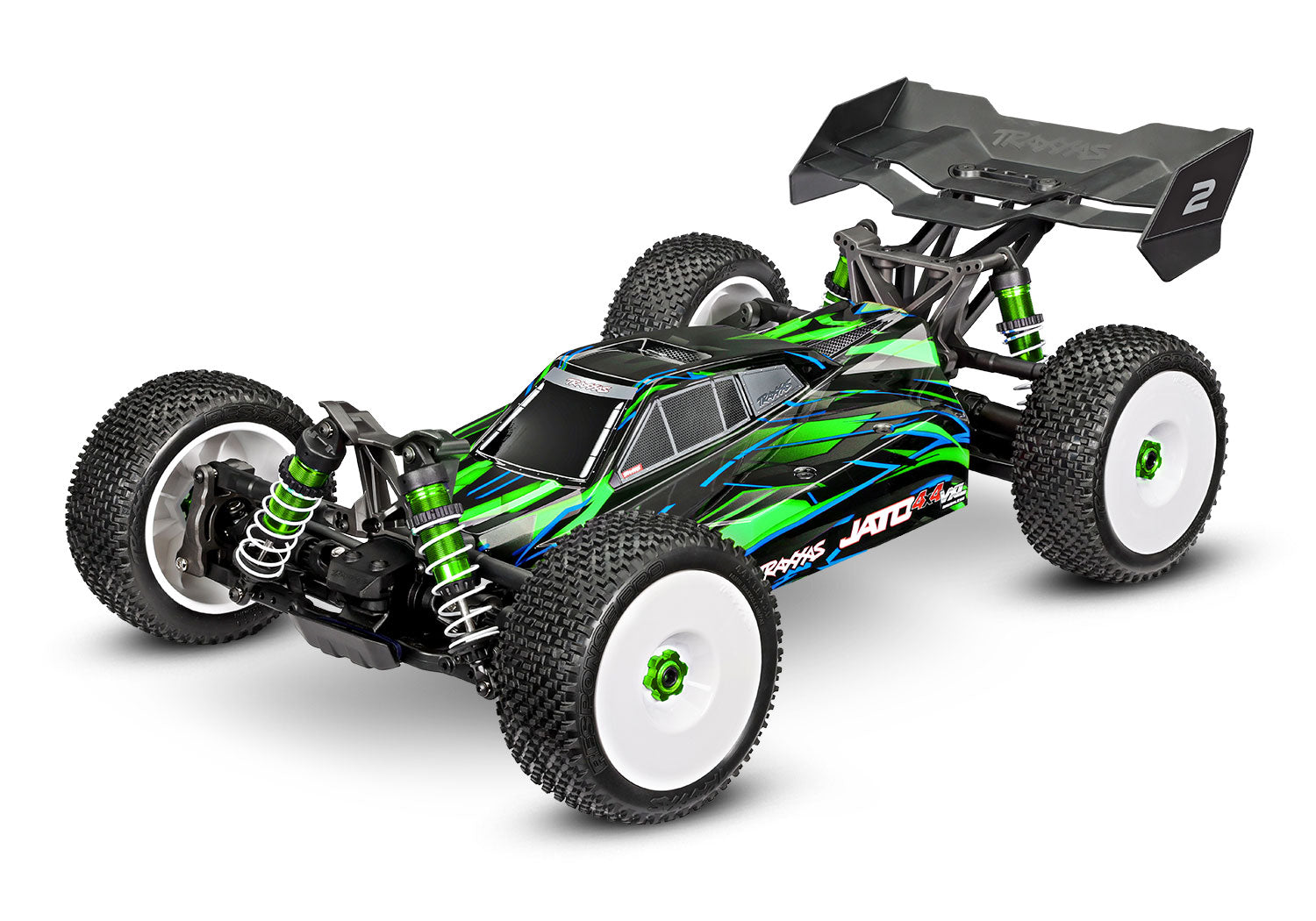

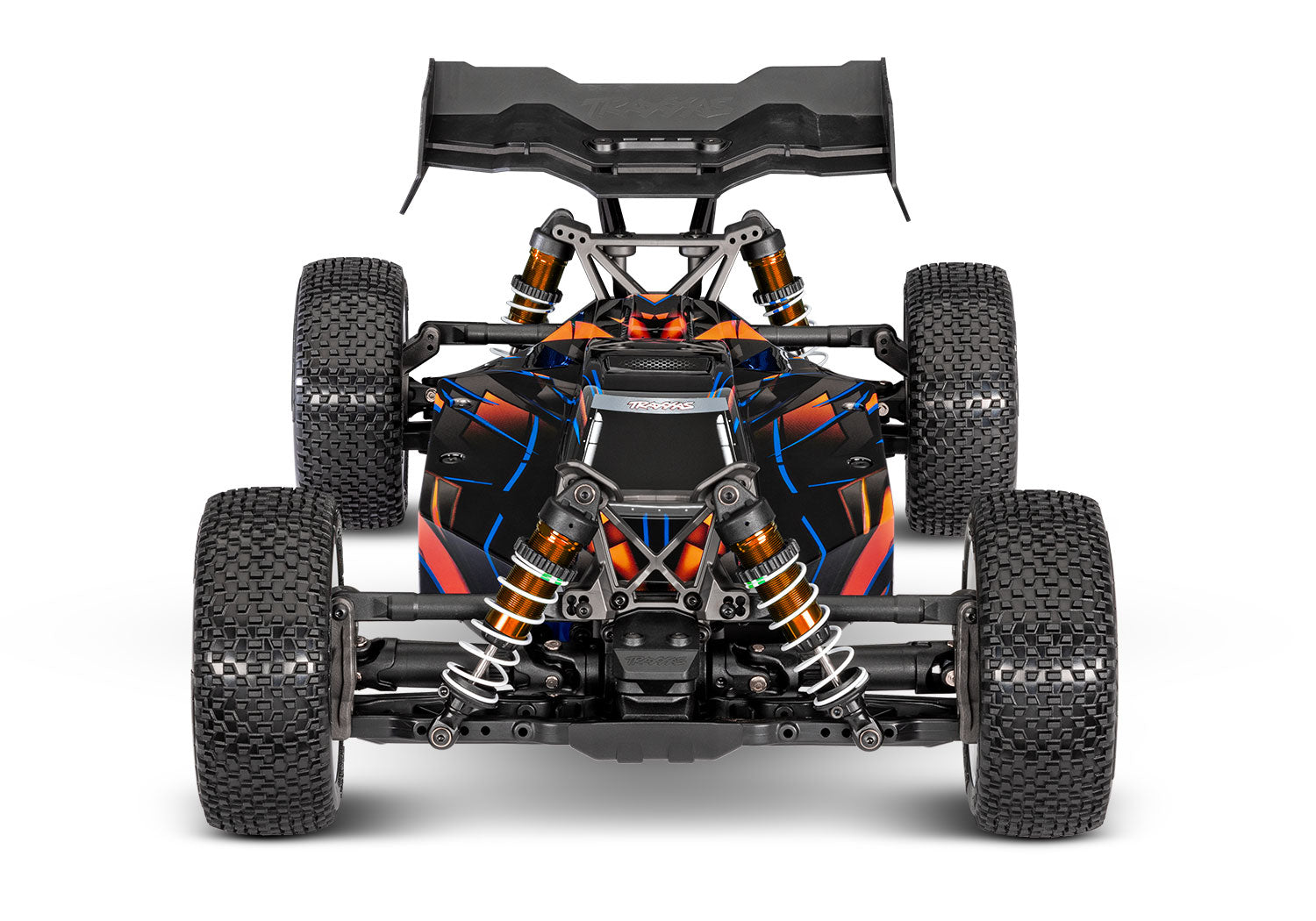

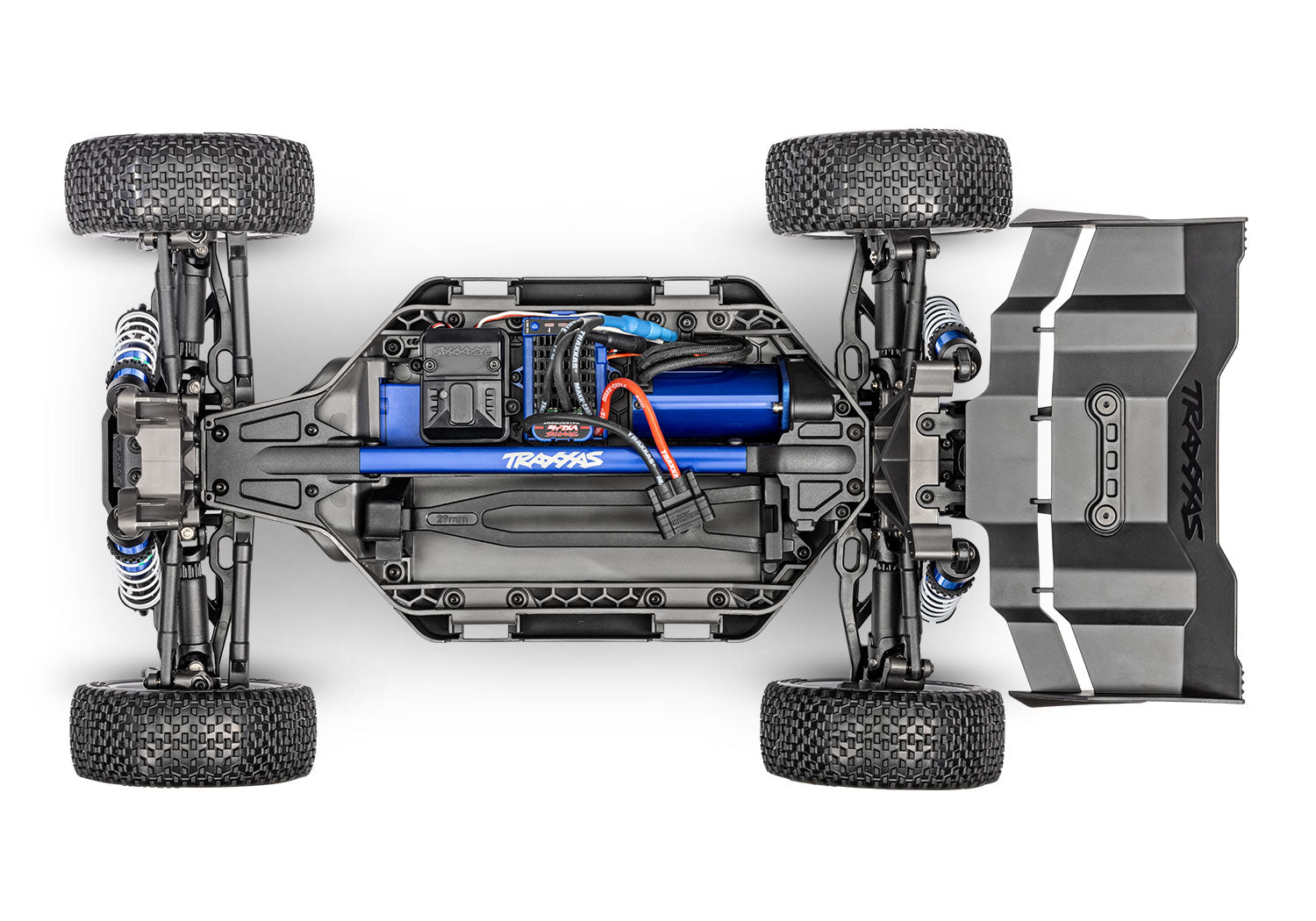

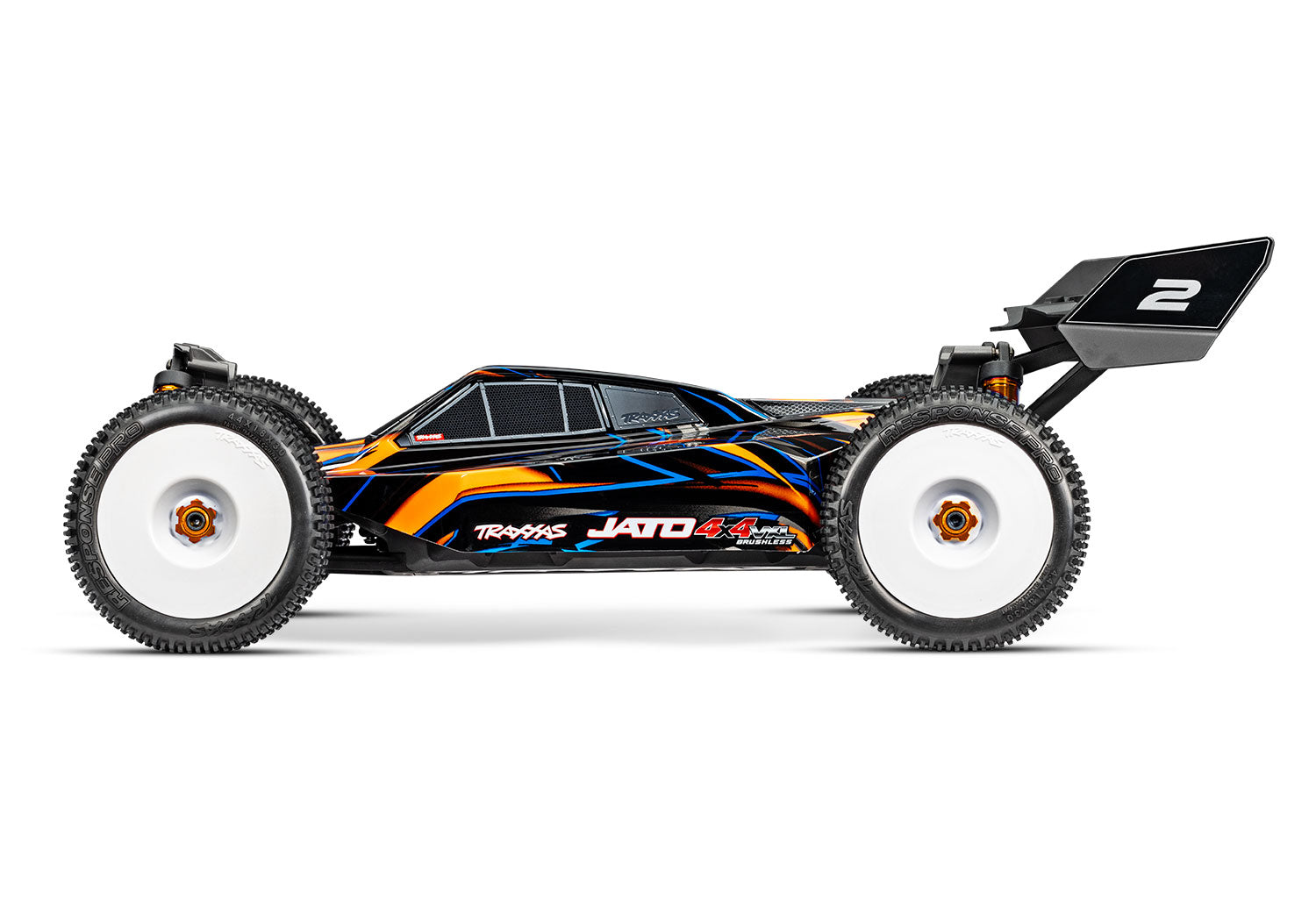

Traxxas: Jato 4X4 VXL 4s

The Traxxas Jato 4X4 VXL delivers blazing speed, 4WD traction, and brushless power. Built for performance with aggressive handling and extreme off-road durability.

What You’ll Need

• 2-4s Lipo and compatible charger
• Four AA alkaline batteries for the transmitter

Features

• VXL-4s Waterproof ESC and Velineon 540XL Brushless Motor
• Clipless Body
• Extreme Heavy Duty Upgrade Kit Installed
• TQi 2.4 GHz High Output Radio System
• VXL-3s Waterproof ESC and Velineon Brushless Motor
• Traxxas Stability Management® (TSM)

Specifications

• Model Type:    1/8 scale buggy

• Skill Level:    2

• Length:    20.4 inches (517 mm)

• Width:    12 inches (305 mm)

• Height:    7 inches (179 mm)

• Weight:    5.6 pounds (2.54 kg)

• Wheelbase:    12.6 inches (320 mm)

• Front Track:    12 inches (305 mm)

• Rear Track:    12 inches (305 mm)

• Shock Length (front):    3.98 inches (101 mm) - XX-long

• Shock Length (rear):    3.98 inches (101 mm) - XX-long
• Differential Type:    Hardened steel bevel, sealed, limited slip

• Gear Pitch:    32

• Overall Drive Ratio:    10.16:1

• Drive System:    Shaft-driven 4WD with Torque-Biasing Center Drive

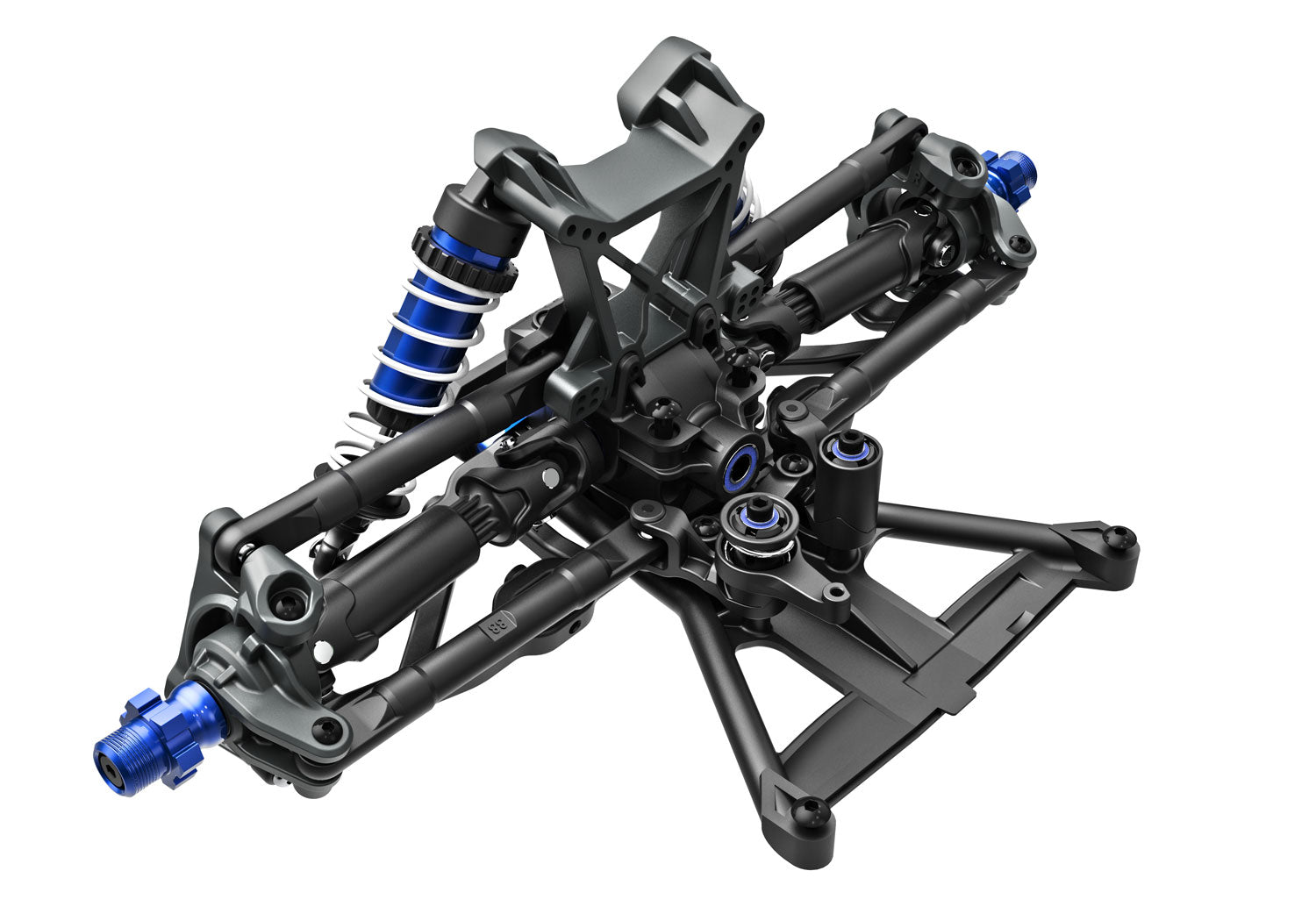

• Steering:    Dual-bellcrank with integrated servo saver

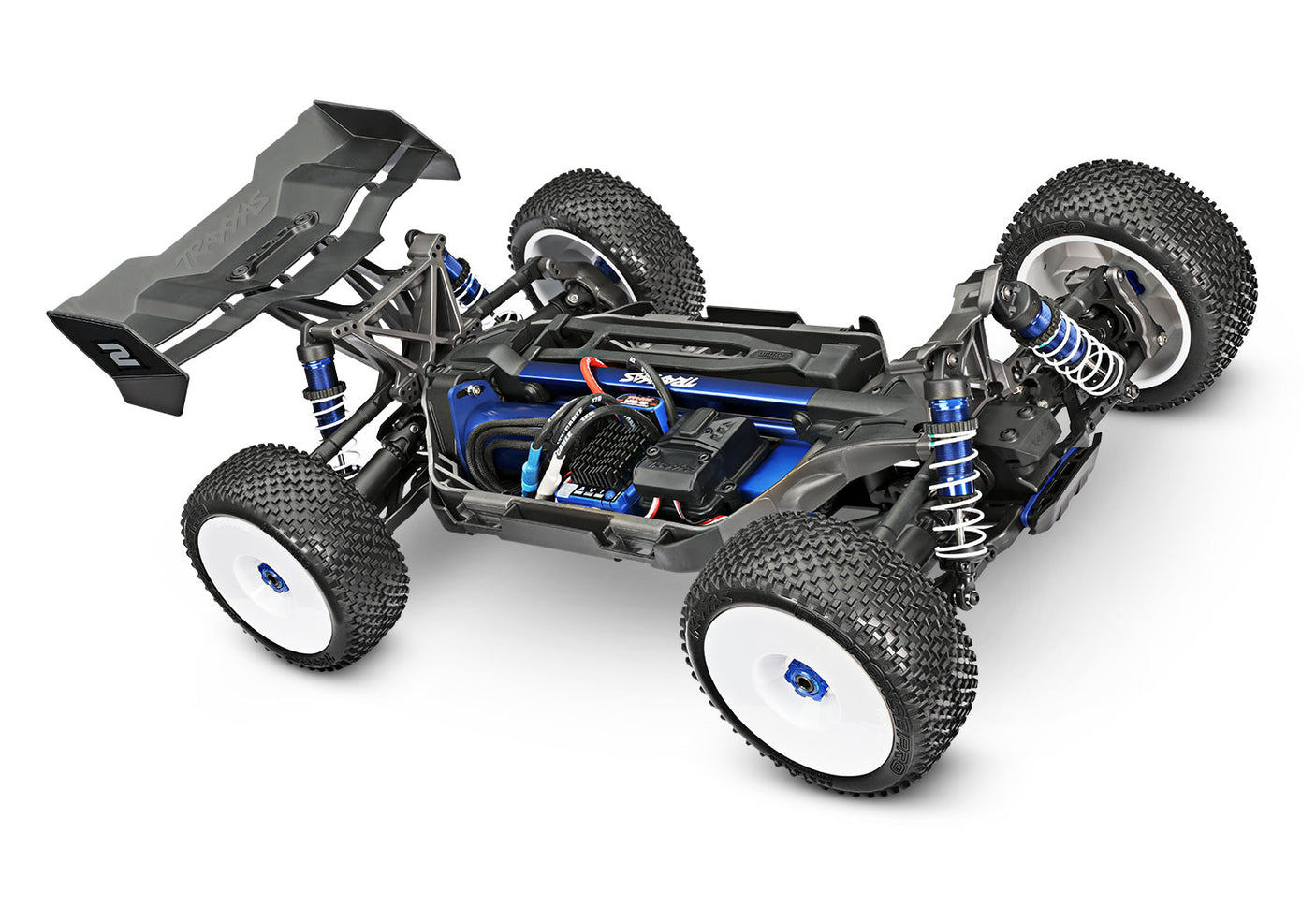

• Chassis Structure/Material:    Composite tub

• Tires:    Response Pro S1-compound with foam inserts

• Wheels (front/rear):    3″ dished buggy wheels

• Wheel Diameter:    3″ inches (78 mm)

• Radio System:    TQi™ 2.4 GHz (2-channel)

• Servo:    Waterproof digital 2075 servo (125 oz-in torque)

• 165 mm x 50 mm x 35mm:    Battery Compartment (L/W/H)

Motor Specifications

• Motor Type:    540XL 2400 Kv sensorless brushless

• Weight:    11.18 ounces (317 g)

• Length:    3.58 inches (91 mm)

• Diameter:    1.41 inches (36 mm)

• Shaft Size:    5 mm

• Connector Type:    Traxxas 6.5 mm bullet connectors

ESC Specifications

• Input Voltage (cells):    2s-4s LiPo (7.4 V - 16.8 V)

• Case Size:    2.40″ (61 mm) x 2.09″ (53 mm) x 1.42″ (36 mm)

• Weight:    4.20 ounces (119 g)

• BEC Voltage:    Selectable 6.0 or 7.4 volts

• Motor Connectors:    Traxxas 6.5 mm bullet connectors

• Battery Connectors:    Traxxas High-Current Connectors

• Thermal Protection:    Two-stage thermal shutdown

• Ports:    RX input, auxiliary fan connector

What’s In The Box

• Jato 4X4 with VXL-4s ESC and 540XL motor

• Quick Start Guide

• TQi 2.4 GHz radio system

• High quality maintenance tools
