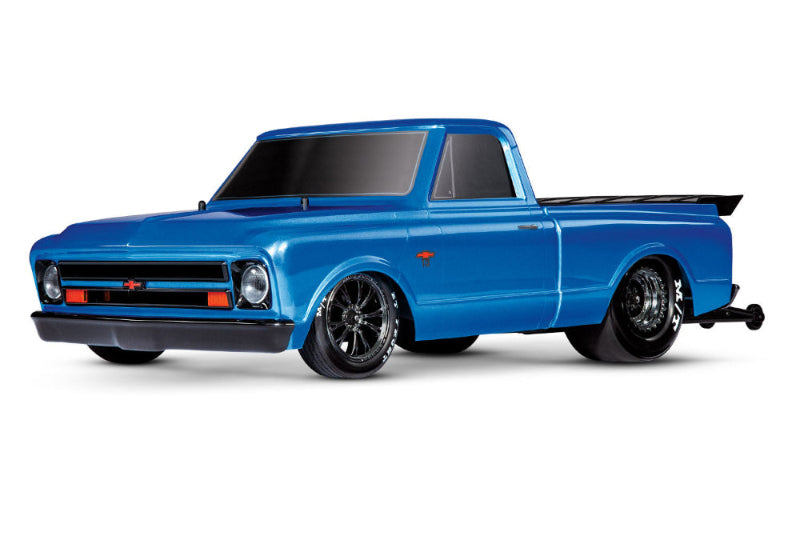

Traxxas: Drag Slash C10 HD (Blue)

Required to Run

• Battery Pack: Drag Slash performs best with a 2869X 2-cell LiPo battery. See full list of batteries.
• Charger: Traxxas EZ-Peak® Live charger (model 2971) is recommended for easy and fast charging performance. Click here for a full list of Traxxas chargers.
• Four AA alkaline batteries for the transmitter

Features

• Licensed Chevrolet® C10 Body
• VXL-3s™ Waterproof Electronic Speed Control
• Velineon® 3500 kV Brushless Motor
• Traxxas Stability Management® (TSM)
• TQi 2.4 GHz High Output Radio System

Specifications

• Model Name:    DRAG SLASH C10 HD

• Model Type:    On-Road Cars

• Model Skill Level:    4

• Scale:    1/10

• Weight:    5.23 pounds (2.37 kg)

• Length:    29.7 inches (754 mm) (with wheelie bar)

• Width:    10.97 inches (279 mm)

• Front Track:    9.31 inches (236 mm)

• Rear Track:    8.07 inches (205 mm)

• Height:    7.7 inches (196 mm)
• Wheelbase:    12.86 inches (327 mm)

• Drivetrain:    2WD

• Transmission:    Heavy-duty Magnum™ 272R

• Differential Type:    Sealed bevel-gear differential

• Gear Ratio (Internal):    9.82:1

• Gear Pitch:    48 pitch

• Servo(s):    2075 digital high-torque waterproof

• Radio System:    TQi™ 2.4 GHz 3-channel transmitter with TSM® receiver

• Battery Compartment Specs:    165 mm X 49.5 mm X 23 mm, 25 mm

Motor Specifications

• Motor Name:    Velineon® 3500

• Motor Type:    Sensorless brushless

• Motor Weight:    9.24 ounces (262 g)

• Motor Length:    3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length

• Motor Diameter:    1.41 inches (36 mm)

• Motor Shaft Size:    3 mm

• Motor Connector Type:    3.5 mm bullet

ESC Specifications

• ESC Name:    VXL-3s™ electronic speed control

• ESC Type:    Brushless

• ESC Case Size:    1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)

• ESC Weight:    3.17 ounces (90 g)

• Motor Connectors:    3.5 mm bullet

• Battery Connectors:    Traxxas High-Current Connector

• ESC Power Wire:    12 gauge Maxx® Cable

What’s In The Box

• Traxxas Drag Slash, Ready-To-Race model with Velineon VXL-3s and 3500 kV motor

• TQi 3-channel 2.4GHz radio system with Trans Brake

• Quick Start Guide

• Optimized 2s high-speed pinion gear

• High quality maintenance tools

• 26 mm and 18 mm wheelie bar wheels
