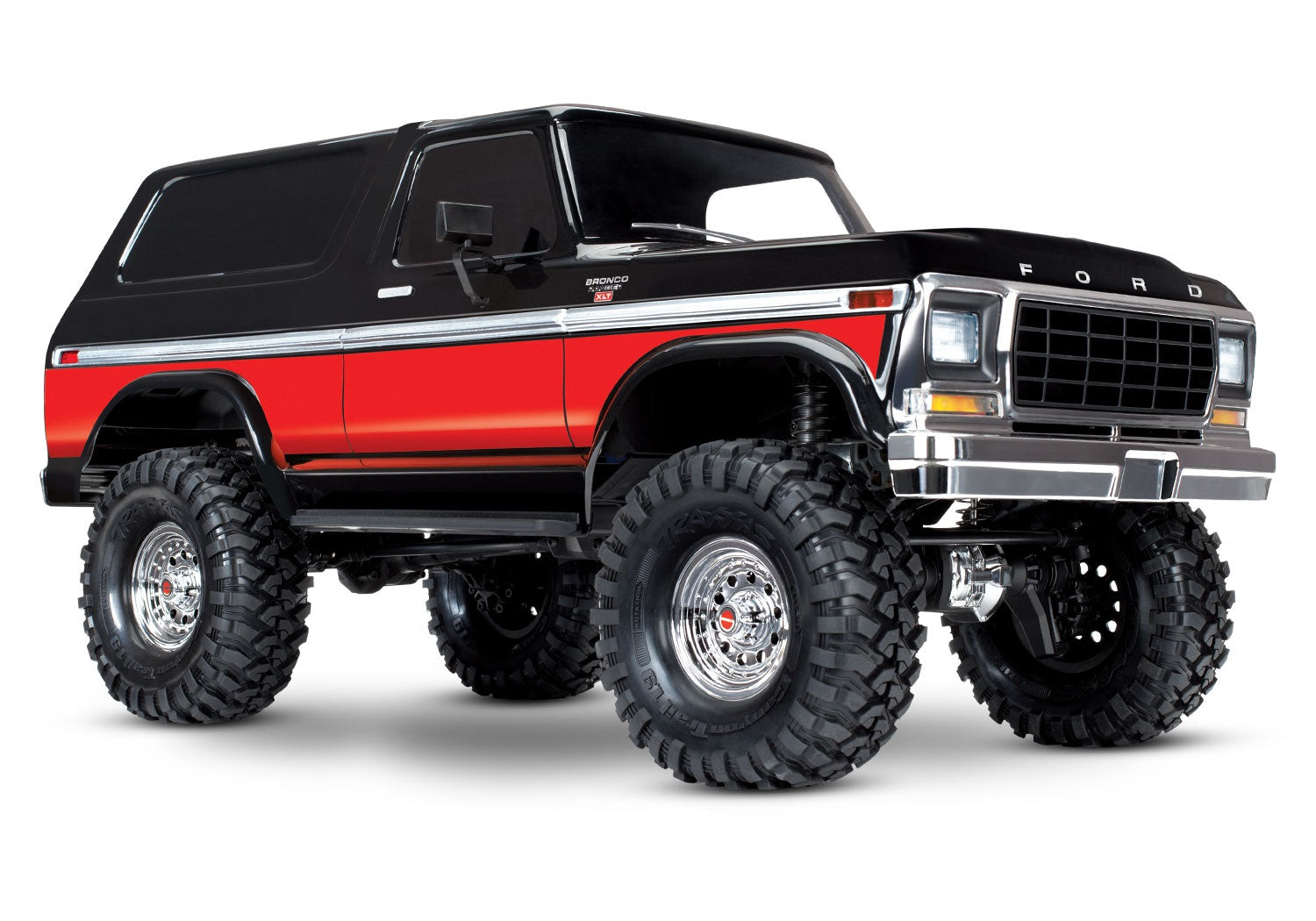

Traxxas: TRX-4 1979 Ford Bronco (Sun)

The Traxxas TRX-4 1979 Ford Bronco blends vintage style with trail-tough tech—portal axles, 2-speed transmission, and scale detail for ultimate RC crawling.

What You’ll Need

• 2-4s Lipo and compatible charger
• Four AA alkaline batteries for the transmitter

Features

• Trail-tuned XL-5™ HV Waterproof ESC and Titan 550 Motor
• Highly-Detailed Licensed Ford Bronco Clipless Body

• Remote-Locking Front and Rear Differentials with Portal Axles

• TQi 2.4 GHz High Output Radio System
• Remote-Shifting High/Low 2-Speed Transmission


Specifications

• Model Name: TRX-4 1979 Ford Bronco

• Model Type: Trail / Crawler

• Model Skill Level: 1

• Scale: 1/10

• Weight: 6.42 pounds (2.91 kg)

• Length: 20.57 inches (523 mm)

• Width: 9.78 inches (249 mm)

• Front Track: 9.78 inches (249 mm)

• Rear Track: 9.78 inches (249 mm)

• Height: 10.47 inches (266 mm)
• Wheelbase: 12.28 inches (312 mm)

• Center Ground Clearance: 3.14 inches (80 mm)

• Drivetrain: Shaft-driven 4WD

• Transmission: 2-speed high/low, remote shifting

• Differential Type: 4 gear, remote locking

• Gear Pitch: 32 pitch

• Servo(s): 2075X metal gear, digital high-torque waterproof

• Radio System: TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver

• Battery Compartment Specs: 159 mm X 47 mm X 23 mm

Motor Specifications

• Motor Name: Titan® 21T Reverse Rotation

• Motor Type: High-torque brushed motor

• Motor Weight: 8.47 ounces (240 g)

• Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length

• Motor Diameter: 1.53 inches (39 mm)

• Motor Shaft Size: 3 mm

• Motor Connector Type: Bullet

ESC Specifications

• ESC Name: XL-5™ HV

• ESC Type: Brushed

• ESC Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)

• ESC Weight: 2.60 ounces (74 g)

• Motor Connectors: Bullet

• Battery Connectors: Traxxas High-Current Connector

• ESC Power Wire: 14 gauge

What’s In The Box

• TRX-4, Ready-To-Race model

• XL-5 HV waterproof electronic speed control

• Titan 21T reverse rotation motor

• TQi 2.4 GHz radio system with cruise control

• High quality maintenance tools
