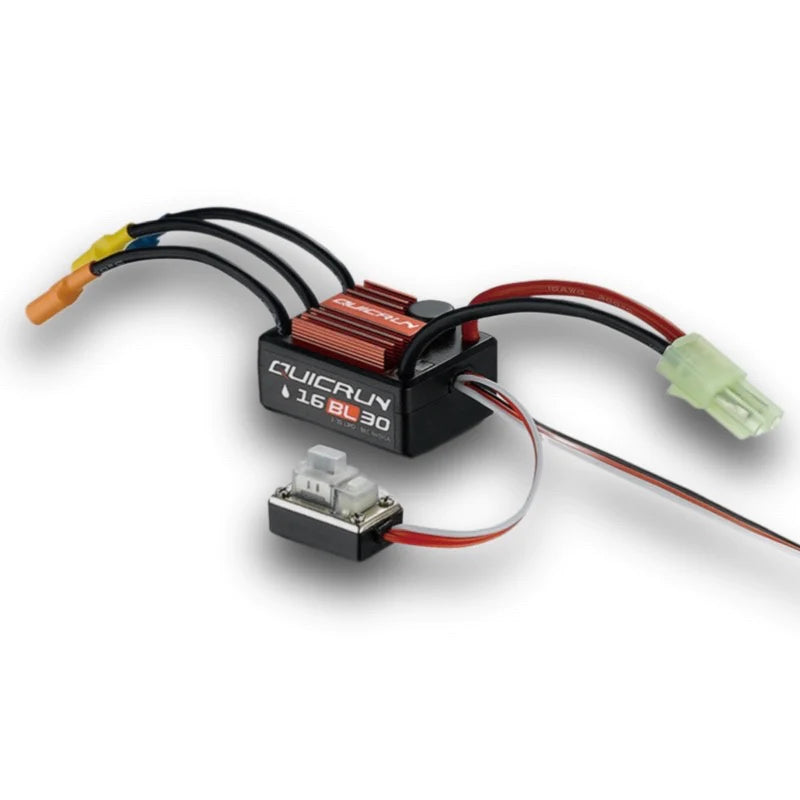

Hobbywing: QUICRUN 16BL30 Brushless ESC

Features

• One-button (the “SET” button on the ESC) sets the ESC.All parameters easily reset to factory default settings.
• Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
• 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit different kinds of models, tires and tracks.
• Multiple protections: Low voltage cut-off protection / Over-heating protection / Throttle signal loss protection / Motor lock-up protection.
• 90 days limited warranty inspection service.

Specifications

• Continuous Current: 30A
• Peak Current: 180A
• Resistance: 0.002Ω
• Motor Type Supported: Sensorless Brushless Motor
• Car Applicable: 1:18, 1:16, 1:14 On-road or Off-road
• Motor Limit For 2S LiPo or 6 cell NiMH:
• 1. On-road: 2435-size or smaller motor with the 8000KV
• 2. Off-road/Buggy/Monster: 2435-size or smaller motor with the 5000KV
• For 3S LiPo or 9 cell NiMH:
• 1. On-road: 2435-size or smaller motor with the 5500KV
• 2. Off-road/Buggy/Monster: 2435-size or smaller motor with the 3500KV
• Battery: 2-3S LiPo or
• BEC Output: 6V/1A (Linear Mode)
• Bullet Connector: 3mm
• Size: 36x28x16 (LxWxH in mm)
• Weight 38g
• External Program Port Not Available
• Working voltage of Fan No cooling fan
