Reflex Racing: RX28SE Worlds Edition 2WD Kit G2

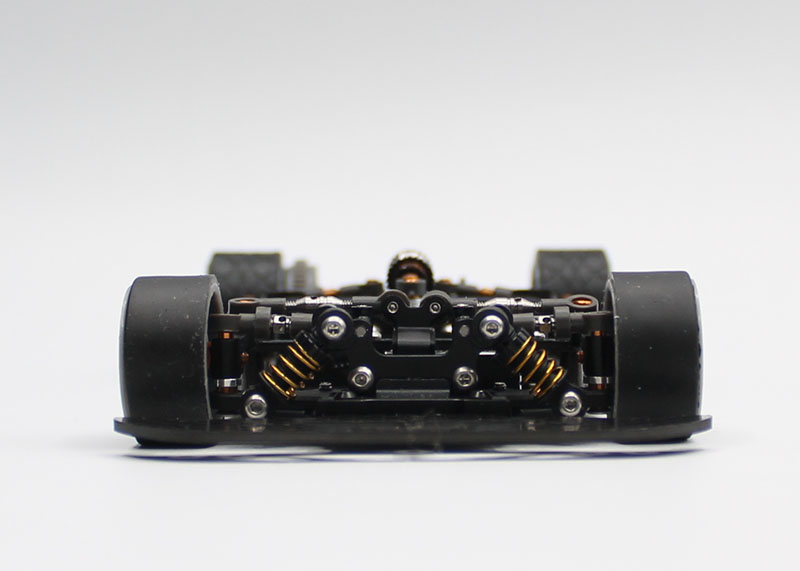

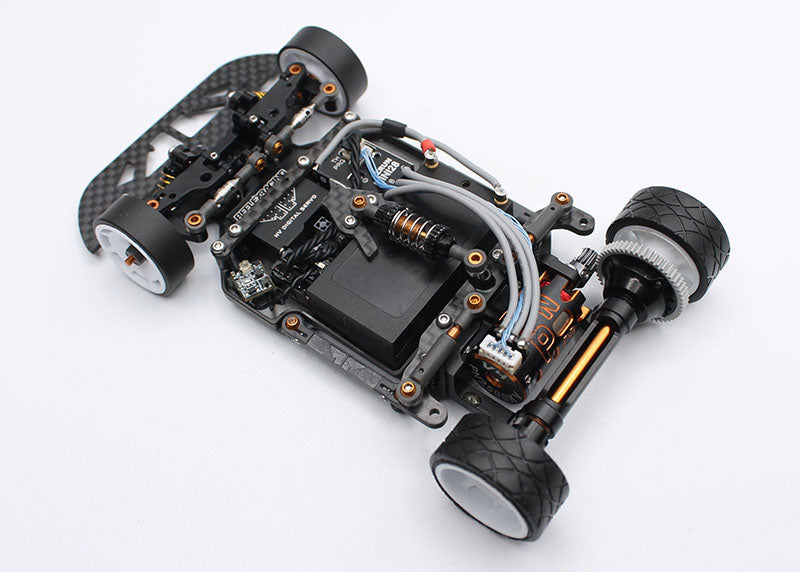

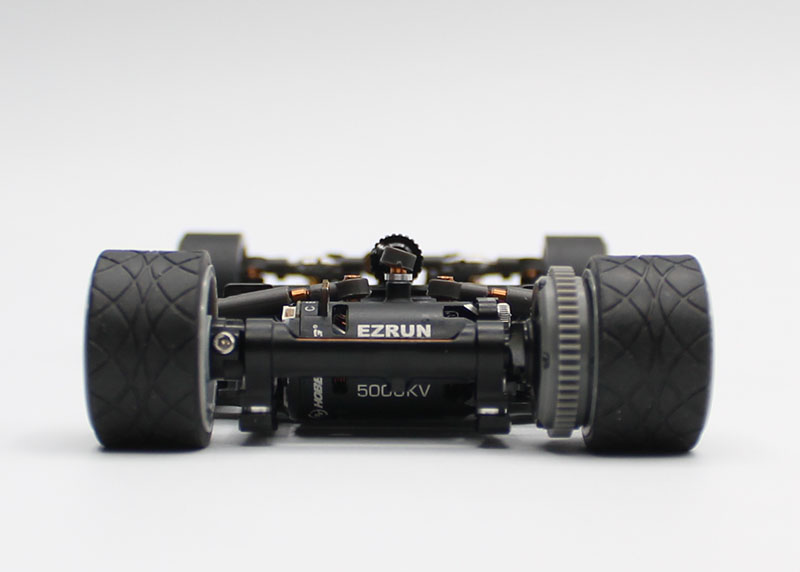

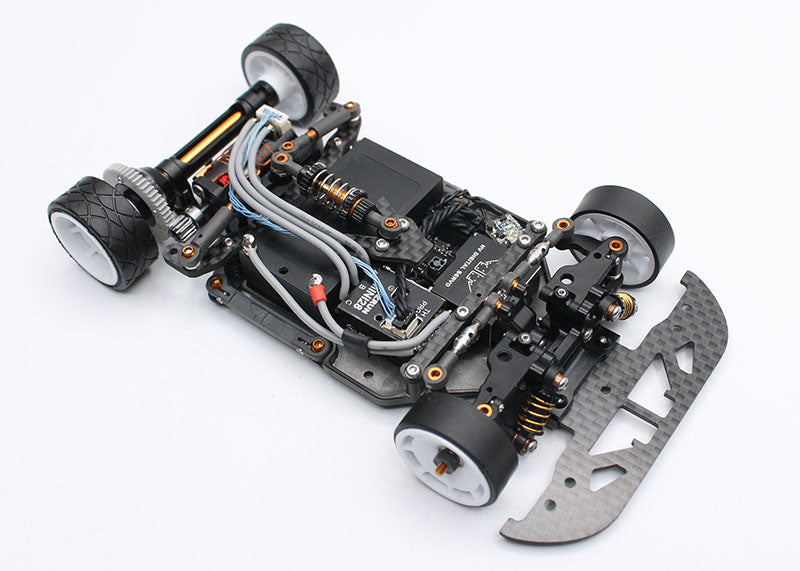

Note: Electronics and lipo are just to show fitment and are not included in the kit.

This kit is a replica of the chassis that the Reflex Team ran in Paris at the 2024 PNWC. It has all the refinements of the Champions edition, plus the new 24mm battery compatible chassis included. The worlds edition has better tolerances, higher quality finishes, hard coated everything and extra attention to details to make the RX28 experience just a little bit better than before.

The new changes in the this worlds edition car are:

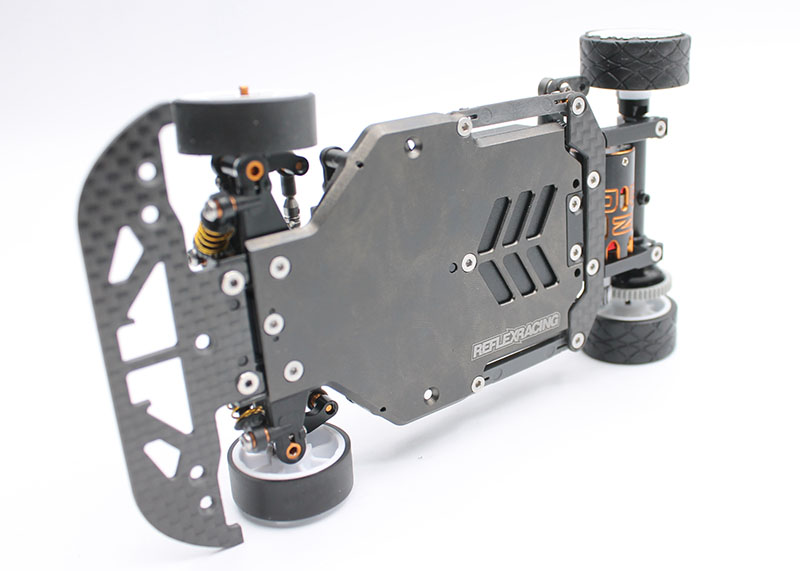

• RX28SE-08 24mm Battery Compatible Chassis
• Updated chassis with holes for screw on weights
• New Body Adjustable Body Post System (adjust body in 1mm increments)
• Revised motor mount with locating spline for tougher assembly and less flex,
• Updated Axle Carrier to include location for attaching rear mass damper.
• Reflex Racing 30 Degree Rear Radial 11mm and 14mm Tires and 40 degree 8.5 and 11mm low profile slicks.
• New Aluminum Main Damper with locking adjustment collar.
• Updated Front Shock Adjustment collars with laser engraved pre-load dial mark
• New Version 4 Ball Differential with Plastic Spur Gear Covers
• Updated hard-coated 7075 T6 aluminum pivots and damper pistons

PLUS (all the items that had been Gen 2 running changes):

• New Damper Tubes
• New Ball Cups and Turnbuckles
• 30g Stainless Steel Chassis with Hard Coating for more durability, quality and performance vs brass
• All New Ultra Low CG Motor Mount for increased corner speed, lighter weight and more precise ride height adjustment.  It allows virtually any motor in the industry to be a drop in to the mounting position.  Allows gear adjustment from 9T-17T Pinions.
• Revised hardware throughout.
• Reflex Racing Speed Wheels Included

Need to Complete

• Body and either front clip or front bumper
• Wheels and tires
• Electronics
• Motor
• ESC
• Receiver with compatible Radio Transmitter
• Servo (Please note, the provided servo horn is designed to work with the Reflex Racing RRE007 Servo 20T Spline. Additionally, the AGFC A06CLS V1, the GL, the PN Anima and the Atomic Servo (it is a little bit of a tight fit but same sized spline) will fit as well.
• Lipo Battery
• Loctite, CA Glue and 30000 diff gear grease
• Tools
• .9mm, 1.3mm and 1.5mm Hex
• #0 Philips screw driver
• Hobby knife
• 400-600 grit sand paper

Dimensions

• 98mm Wheelbase
• 145g-170g weight RTR Depending on body and Electronics
• 69mm to 78mm Rear Track Width
• 72mm to 75mm Front Track Width

World Edition Manual: https://www.reflexracing.net/assets/images/RX28G2_Std_Manual_v30.pdf?rdm=21815DA79E6E
