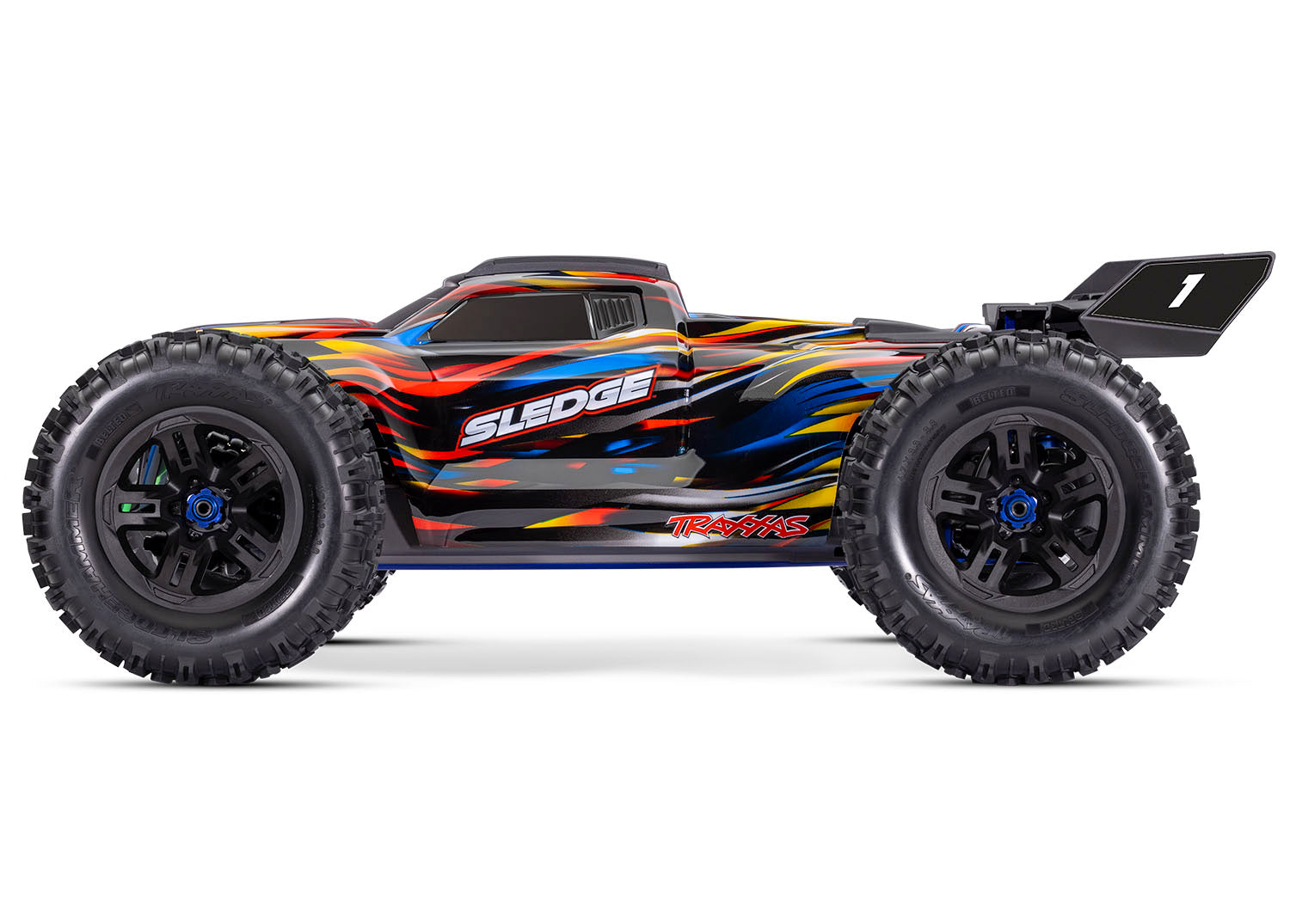

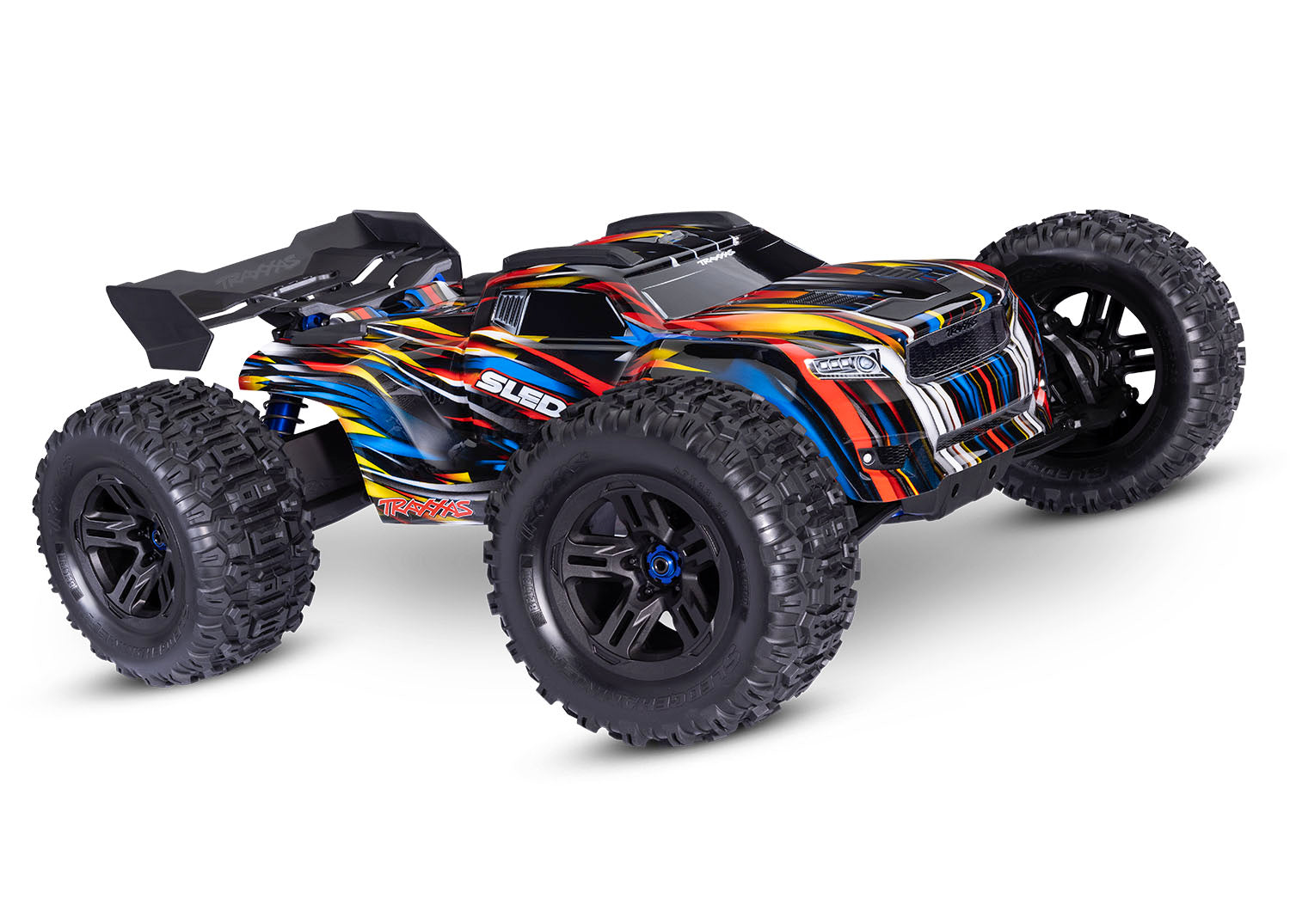

Traxxas: 1/8 Sledge Belted (Blue)

Required to Run

• LiPo Batteries & Charger: Traxxas recommends dual 5000mAh 3-cell 11.1 V Power Cell LiPo batteries for maximum performance. Dual 7600mAh 7.4 V LiPo batteries or a single 6700mAh 14.8 V LiPo battery will operate the vehicle with reduced performance.
• Four AA alkaline batteries for the transmitter.

Features

• Up to 70+ mph with Two 3s LiPo Batteries (sold separately)

• VXL-6s™ Waterproof Electronic Speed Control
• Velineon 2000 kV Brushless Motor
• TQi™ 2.4 GHz High Output Radio System
• Clipless ProGraphix Body

Specs

• Model Name:    Sledge Belted

• Model Type:    Monster Truck

• Model Speed:    70+ mph with 6s LiPo battery and optional
• gearing

• Model Skill Level:    4

• Scale:    1/8

• Weight:    12.74 lbs (5.77 kg)

• Length:    23.78 inches (604 mm including wing)

• Width:    18.10 inches (459 mm)

• Front Track:    18.10 inches (459 mm)

• Rear Track:    18.10 inches (459 mm)

• Height:    8.43 inches (214 mm)
• Wheelbase:    15.10 inches (384 mm)

• Center Ground Clearance:    1.95 inches (50 mm)

• Drivetrain:    Shaft-driven 4WD

• Transmission:    Single speed

• Differential Type:    Sealed, hardened steel bevel, limited slip

• Gear Pitch:    1.0 metric pitch

• Servo(s):    2275 digital metal-gear waterproof (347 oz-in)

• Radio System:    TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver

• Battery Compartment Specs:    181 mm X 54 mm X 45 mm

Motor Specs

• Motor Name:    4-pole 2000 kV

• Motor Type:    2000 kV sensorless brushless

• Motor Weight:    14.32 oz (406 g)

• Motor Length:    2.97 inches (76 mm)

• Motor Diameter:    1.65 inches (42 mm)

• Motor Shaft Size:    5 mm

• Motor Connector Type:    Traxxas 6.5 mm bullet connectors

ESC Specs

• ESC Name:    VXL-6s

• ESC Type:    Brushless

• ESC Case Size:    2.28” (58 mm) x 2.83” (72 mm) x 1.81” (46mm)

• ESC Weight:    7.30 oz (207 g)

• Motor Connectors:    6.5 mm bullet connectors

• Battery Connectors:    Traxxas High-Current Connectors

What’s In The Box

• Sledge, Ready-To-Race® monster truck with Traxxas 2000 kV brushless motor
• VXL-6s waterproof electronic speed control with integrated telemetry

• Quick Start Guide

• TQi 2.4 GHz radio system

• High quality maintenance tools

• Jumper plug (for 4s battery use)
