Traxxas: X-Maxx 8s Belted

Required To Run

• LiPo Batteries: IMPORTANT: X-Maxx requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh Power Cell LiPo batteries with iD® are recommended for optimal performance. (part 2890X).
• 4s LiPo Completer Pack with iD®
• Four AA alkaline batteries for the transmitter.

Features

• VXL-8s™ Waterproof Electronic Speed Control
• Velineon® 1200XL Brushless Motor
• 50+ MPH with Two 4s LiPo Batteries and Included Optional Spur Gear
• Traxxas Stability Management® (TSM)
• TQi™ 2.4 GHz High Output Radio System
• Clipless Body Mount System
• Clipless Battery Retention System

Specifications

• Model Name:    X-Maxx 8s Belted

• Model Type:    Monster Truck

• Model Speed:    50+ mph with two 4s LiPo batteries and optional pinion gear

• Model Skill Level:    6

• Scale:    X-Truck

• Weight:    19.1 pounds (8.66 kg)

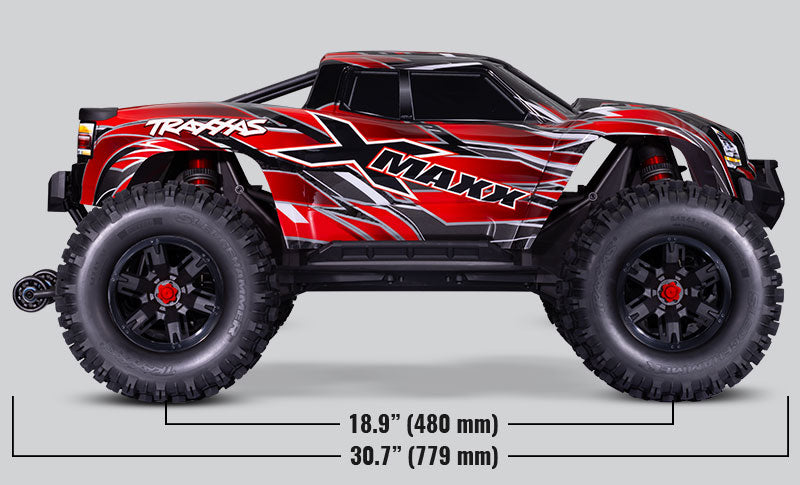

• Length:    30.67 inches (779 mm)

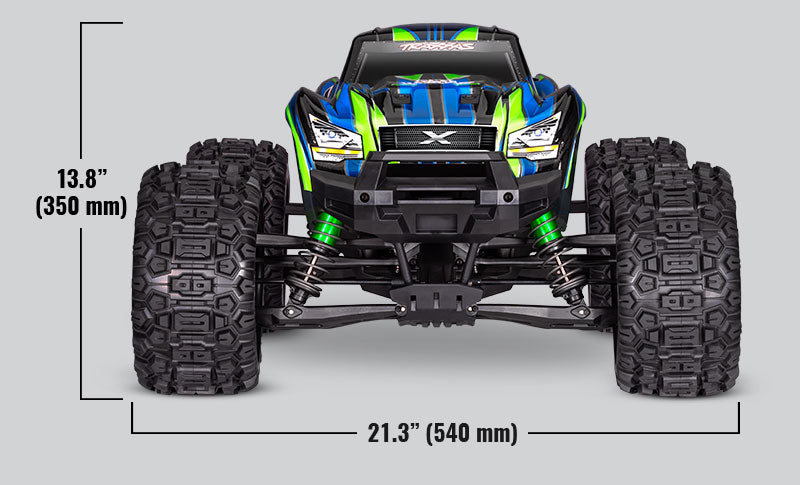

• Width:    21.3 inches (540 mm)

• Front Track:    21.3 inches (540 mm)

• Rear Track:    21.3 inches (540 mm)

• Height:    13.99 inches (355 mm)

• Wheelbase:    18.92 inches (480 mm)

• Center Ground Clearance:    4.2 inches (107 mm)

• Drive System:    Shaft-driven 4WD

• Drivetrain:    Shaft-driven 4WD

• Transmission:    Single speed

• Differential Type:    Sealed, hardened steel bevel, limited slip

• Gear Pitch:    1.0 metric pitch

• Servo(s):    2085X metal gear ultra-high-torque waterproof

• Radio System:    TQi™ 2.4 GHz 2-channel transmitter with wireless module

• Battery Compartment Specs:    197 mm X 52 mm X 44 mm


Motor Specifications

• Motor Name:    Velineon® 1200XL

• Motor Type:    1275 kV sensorless brushless

• Motor Weight:    23.44 ounces (665 g)

• Motor Length:    4.32 inches (110 mm)

• Motor Diameter:    1.88 inches (48 mm)

• Motor Shaft Size:    5 mm

• Motor Connector Type:    6.5 mm bullet connectors

ESC Specifications

• ESC Name:    Velineon® VXL-8s™

• ESC Type:    Brushless

• ESC Case Size:    2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)

• ESC Weight:    7.60 ounces (215.5 g)

• Motor Connectors:    6.5 mm bullet connectors

• Battery Connectors:    Traxxas High-Current Connectors

• ESC Power Wire:    10 gauge Maxx® Cable

What’s In The Box

• X-Maxx, Ready-To-Race model with Traxxas Big Block brushless motor
• VXL-8s waterproof electronic speed control with integrated telemetry

• Quick Start Guide

• TQi 2.4 GHz radio system

• High quality maintenance tools
